SWC Operator Replacement Parts

We believe it should be as easy as possible to find the replacement parts you need for your SWC swing gate operator. Below you'll find a parts diagram as well as links to every available replacement part.

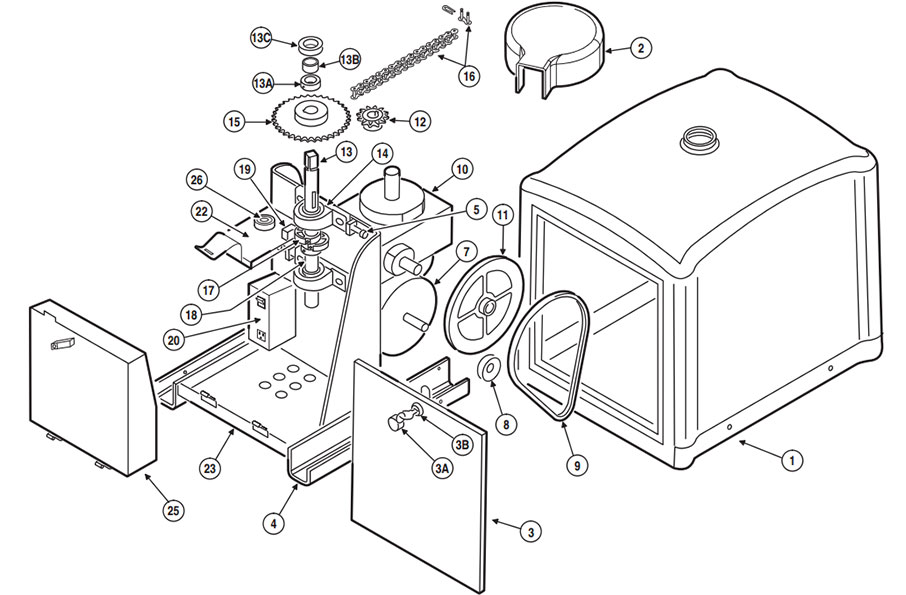

Part Diagram Linear / Osco 2300-925-BLACK Operator Cover (Black) Linear / Osco 2300-926-BLACK Rain Cap (Black) Linear / Osco 2100-2030-BT Access Door (Black) - No Lock or Reset Button Linear / Osco 2510-354 Plunger Reset Assembly Linear / Osco 2200-790 Lock for Cover, with Keys Linear - Apex Mounting Plate - 2100-2104 Linear / Osco 2110-785 Frame Assembly Linear / Osco 2400-509 Socket Head Cap Screw (3/8-16 x 1 1/2") Linear / Osco 2200-012 Pulley, 2", 5/8" Bore (for 1/2 and 3/4 HP) Linear / Osco 2200-932 V-Belt 31 4L Style Cogged Linear / Osco 2200-081 Gear Reducer 60:1 (for 1/2 and 3/4 HP) Linear / Osco 2200-885 Pulley, 8”, 3/4” Bore (for 1/2 and 3/4 HP) Linear / Osco 2200-084 Sprocket (40-B-13, 1" Bore) - for 1/2 and 3/4 HP Linear / Osco 2200-274 Pillow Block Bearing (1 Linear / Osco 2100-519 Sleeve Spacer Linear / Osco 2200-016 Moisture Seal Linear / Osco 2200-376 Sprocket (40-B-36, 1 Linear / Osco 2200-972 #40 Chain (24 Links) - for 1/2 and 3/4 HP Linear / Osco 2200-973 #40 Chain (26 Links) - for 1 HP Linear / Osco 2500-2347 Limit Switch Linear / Osco 2510-422 115 VAC Power Box Assembly Linear / Osco 2510-430 230 VAC Power Box Assembly Linear / Osco 2500-2411 Power Switch Only, 115 VAC and 230 VAC Linear / Osco 2200-960 Pulley, 1 5/8", 5/8" Bore (for 1 HP only) Linear / Osco 2200-931 V-Belt, 30” (for 1 HP only) Linear / Osco 2200-957 Gear Reducer 60:1 (for 1 HP) Linear / Osco 2200-969 Pulley, 8”, 7/8” Bore (for 1 HP) Linear / Osco 2200-958 Sprocket (40-B-14, 1 1/8” Bore) - for 1 HP Linear / Osco 2200-006 #40 Chain Master Link Linear / Osco 2400-145 #40 Chain Half Link Linear / Osco 2500-212 Transformer (115/24VAC, 40VA) Linear / Osco 2500-791 Transformer (230/24VAC, 40VA) Linear / Osco 2100-2108 Limit Switch Mounting Bracket Linear / Osco 620-101293 Apex II Module Assembly Linear Gate Opener Control Board Linear - Apex Mounting Plate - 2100-2104 Linear 2300-1025 Apex Clear Cover w/ Knob Linear / Osco 2510-423 Knob Kit Linear / Osco 2510-420 Stop/Reset Switch and Bracket Assembly Linear / Osco 2100-2108 Limit Switch Mounting Bracket Linear / Osco 1/2 HP, 115V, 1 Phase Motor for Automatic Gate Operators - 2500-2307 Linear / Osco 1/2 HP, 208/230V, 1 Phase Motor for Automatic Gate Operators - 2500-2308 Linear / Osco 3/4 HP, 115V, 1 Phase Motor for Automatic Gate Operators - 2500-2309 Linear / Osco 3/4 HP, 208/230V, 1 Phase Motor for Automatic Gate Operators - 2500-2310 Linear / Osco 2120-483 Post Mount Kit Linear / Osco 2100-2041 Operator Base Plate Linear / Osco 2500-1776 Transformer Only (115/24V, 250VA)
Linear / Osco 2100-2111 Controller Latch

Linear / Osco 2100-2111 Controller Latch (2100-2111)


$11.33 each

Back to top
1
Operator Cover Black - Linear 2300-925-BLACK

Linear / Osco 2300-925-BLACK Operator Cover (Black) (2300-925-BLACK)


$181.19 each

Back to top
2
Linear / Osco 2300-926-BLACK Rain Cap

Linear / Osco 2300-926-BLACK Rain Cap (Black) (2300-926-BLACK)


$28.11 each

Back to top
Linear / Osco 2200-673 #40 Chain (21 Links)

Linear / Osco 2200-673 #40 Chain (21 Links) (2200-673)


$22.56 each

Back to top
10a
Linear / Osco 2200-081 Gear Reducer

Linear / Osco 2200-081 Gear Reducer 60:1 (for 1/2 and 3/4 HP) (2200-081)


$594.35 each

Back to top
10b
Linear / Osco 2200-957 Gear Reducer 60:1 (for 1 HP)

Linear / Osco 2200-957 Gear Reducer 60:1 (for 1 HP) (2200-957)


$526.59 each

Back to top
11a
Linear / Osco 2200-885 Pulley, 8”, 3/4” Bore (for 1/2 and 3/4 HP)

Linear / Osco 2200-885 Pulley, 8”, 3/4” Bore (for 1/2 and 3/4 HP) (2200-885)


$39.37 each

Back to top
11b
Linear / Osco 2200-969 Pulley, 8”, 7/8” Bore (for 1 HP)

Linear / Osco 2200-969 Pulley, 8”, 7/8” Bore (for 1 HP) (2200-969)


$22.63 each

Back to top
12a
Linear / Osco 2200-084 Sprocket (40-B-13, 1" Bore) - for 1/2 and 3/4 HP

Linear / Osco 2200-084 Sprocket (40-B-13, 1" Bore) - for 1/2 and 3/4 HP (2200-084)


$43.65 each

Back to top
12b
Linear / Osco 2200-958 Sprocket (40-B-14, 1 1/8” Bore) - for 1 HP

Linear / Osco 2200-958 Sprocket (40-B-14, 1 1/8” Bore) - for 1 HP (2200-958)


$22.63 each

Back to top
13a
Linear / Osco 2200-016 Moisture Seal

Linear / Osco 2200-016 Moisture Seal (2200-016)


$3.60 each

Back to top
13b
Linear / Osco 2100-519 Sleeve Spacer

Linear / Osco 2100-519 Sleeve Spacer (2100-519)


$5.64 each

Back to top
15a
Linear / Osco 2200-376 Sprocket (40-B-36, 1" Bore)

Linear / Osco 2200-376 Sprocket (40-B-36, 1" Bore) (2200-376)


$98.42 each

Back to top
16a
Linear / Osco 2200-972 #40 Chain (24 Links) - for 1/2 and 3/4 HP

Linear / Osco 2200-972 #40 Chain (24 Links) - for 1/2 and 3/4 HP (2200-972)


$24.63 each

Back to top
16b
Linear / Osco 2200-973 #40 Chain (26 Links) - for 1 HP

Linear / Osco 2200-973 #40 Chain (26 Links) - for 1 HP (2200-973)


$27.09 each

Back to top
16c
Linear / Osco 2200-006 #40 Chain Master Link

Linear / Osco 2200-006 #40 Chain Master Link (2200-006)


$2.48 each

Back to top
16d
Linear / Osco 2400-145 #40 Chain Half Link

Linear / Osco 2400-145 #40 Chain Half Link (2400-145)


$2.57 each

Back to top
20a
Linear / Osco 2510-422 115 VAC Power Box Assembly

Linear / Osco 2510-422 115 VAC Power Box Assembly (2510-422)


$113.24 each

Back to top
20b
Linear / Osco 2510-430 230 VAC Power Box Assembly

Linear / Osco 2510-430 230 VAC Power Box Assembly (2510-430)


$113.24 each

Back to top
20c
Switch Rocker Power Apex

Linear / Osco 2500-2411 Power Switch Only, 115 VAC and 230 VAC (2500-2411)


$11.33 each

Back to top
20e
Linear / Osco 2500-212 Transformer (115/24VAC, 40VA)

Linear / Osco 2500-212 Transformer (115/24VAC, 40VA) (2500-212)


$51.68 each

Back to top
20f
Linear / Osco 2500-791 Transformer (230/24VAC, 40VA)

Linear / Osco 2500-791 Transformer (230/24VAC, 40VA) (2500-791)


$51.68 each

Back to top
25b
Linear - Apex Mounting Plate - 2100-2104

Linear - Apex Mounting Plate - 2100-2104 (2100-2104)


$29.88 each

Back to top
25c
Linear 2300-1025 Apex Clear Cover w/ Knob

Linear 2300-1025 Apex Clear Cover w/ Knob (2300-1025)


$13.76 each

Back to top
25d
Linear / Osco 2510-423 Knob Kit

Linear / Osco 2510-423 Knob Kit (2510-423)


$7.92 each

Back to top
25e
2510-420 Switch Reset Assy Sw Apex

Linear / Osco 2510-420 Stop/Reset Switch and Bracket Assembly (2510-420)


$28.32 each

Back to top
3b
Access Door Black - Linear 2100-2030-BT

Linear / Osco 2100-2030-BT Access Door (Black) - No Lock or Reset Button (2100-2030-BT)


$37.98 each

Back to top
3c
Plunger Reset Assembly - Linear 2510-354

Linear / Osco 2510-354 Plunger Reset Assembly (2510-354)


$30.98 each

Back to top
3d
Linear / Osco 2200-790 Lock for Cover, with Keys

Linear / Osco 2200-790 Lock for Cover, with Keys (2200-790)


$19.46 each

Back to top
Z
Linear / Osco 2500-1776 Transformer Only (115/24V, 250VA)

Linear / Osco 2500-1776 Transformer Only (115/24V, 250VA) (2500-1776)


$276.97 each

Back to top
4
Frame Assembly - Linear 2110-785

Linear / Osco 2110-785 Frame Assembly (2110-785)


$207.69 each

Back to top
5
Linear / Osco 2400-509 Socket Head Cap Screw (3/8-16 x 1 1/2")

Linear / Osco 2400-509 Socket Head Cap Screw (3/8-16 x 1 1/2") (2400-509)


$4.54 each

Back to top
Linear / Osco 2300-381 Friction Disc for 5

Linear / Osco 2300-381 Friction Disc for 5” Torque Limiter (Pair) (2300-381)


$56.51 each

Back to top
7d
Linear / Osco 3/4 HP, 208/230V, 1 Phase Motor for Automatic Gate Operators - 2500-2310

Linear / Osco 3/4 HP, 208/230V, 1 Phase Motor for Automatic Gate Operators - 2500-2310 (2500-2310)


$533.70 each

Back to top
Linear / Osco Capacitor for 2500-2312 Motor for Automatic Gate Operators - 2500-1932

Linear / Osco Capacitor for 2500-2312 Motor for Automatic Gate Operators - 2500-1932 (2500-1932)


$96.97 each

Back to top
7a
Linear / Osco 1/2 HP, 115V, 1 Phase Motor for Automatic Gate Operators - 2500-2307

Linear / Osco 1/2 HP, 115V, 1 Phase Motor for Automatic Gate Operators - 2500-2307 (2500-2307)


$478.93 each

Back to top
7b
Linear / Osco 1/2 HP, 208/230V, 1 Phase Motor for Automatic Gate Operators

Linear / Osco 1/2 HP, 208/230V, 1 Phase Motor for Automatic Gate Operators - 2500-2308 (2500-2308)


$478.93 each

Back to top
7c
Linear / Osco 3/4 HP, 115V, 1 Phase Motor for Automatic Gate Operators - 2500-2309

Linear / Osco 3/4 HP, 115V, 1 Phase Motor for Automatic Gate Operators - 2500-2309 (2500-2309)


$533.70 each

Back to top
8a
Linear / Osco 2200-012 Pulley, 2", 5/8" Bore (for 1/2 and 3/4 HP)

Linear / Osco 2200-012 Pulley, 2", 5/8" Bore (for 1/2 and 3/4 HP) (2200-012)


$19.46 each

Back to top
8b
Linear / Osco 2200-960 Pulley, 1 5/8", 5/8" Bore (for 1 HP only)

Linear / Osco 2200-960 Pulley, 1 5/8", 5/8" Bore (for 1 HP only) (2200-960)


$28.32 each

Back to top
Linear / Osco 1 HP, 115V, 1 Phase Motor for Automatic Gate Operators

Linear / Osco 1 HP, 115V, 1 Phase Motor for Automatic Gate Operators - 2500-2311 (2500-2311)


$581.37 each

Back to top
9a
Linear / Osco 2200-932 V-Belt 31 4L Style Cogged

Linear / Osco 2200-932 V-Belt 31 4L Style Cogged (2200-932)


$27.17 each

Back to top
9b
Linear / Osco 2200-931 V-Belt, 30” (for 1 HP only)

Linear / Osco 2200-931 V-Belt, 30” (for 1 HP only) (2200-931)


$25.34 each

Back to top
Linear / Osco 1 HP, 208/230V, 1 Phase Motor for Automatic Gate Operators -2500-2312

Linear / Osco 1 HP, 208/230V, 1 Phase Motor for Automatic Gate Operators -2500-2312 (2500-2312)


$594.89 each

Back to top
Linear / Osco Capacitor for 2500-2307 Motor for Automatic Gate Operators - 2500-2336

Linear / Osco Capacitor for 2500-2307 Motor for Automatic Gate Operators - 2500-2336 (2500-2336)


$130.23 each

Back to top
Linear / Osco Capacitor for 2500-2311 Motor for Automatic Gate Operators - 2500-2338

Linear / Osco Capacitor for 2500-2311 Motor for Automatic Gate Operators - 2500-2338 (2500-2338)


$164.21 each

Back to top
14
Linear / Osco 2200-274 Pillow Block Bearing (1" Diameter)

Linear / Osco 2200-274 Pillow Block Bearing (1" Diameter) (2200-274)


$92.14 each

Back to top
19
Linear / Osco 2500-2347 Limit Switch

Linear / Osco 2500-2347 Limit Switch (2500-2347)


$11.33 each

Back to top
22
Linear / Osco 2100-2108 Limit Switch Mounting Bracket

Linear / Osco 2100-2108 Limit Switch Mounting Bracket (2100-2108)


$28.32 each

Back to top
25
Linear / Osco 620-101293 Apex II Module Assembly Linear Gate Opener Control Board

Linear / Osco 620-101293 Apex II Module Assembly Linear Gate Opener Control Board (620-101293)


$537.12 each

Back to top

Back to top


Please note some products may be discontinued or no longer available, however, we make the best effort to keep all product information up-to-date.
