SWC Gate Arm Replacement Parts

To make it as easy as possible to find the right SWC gate arm replacement part, below you'll find a part diagram and links to every available replacement part.

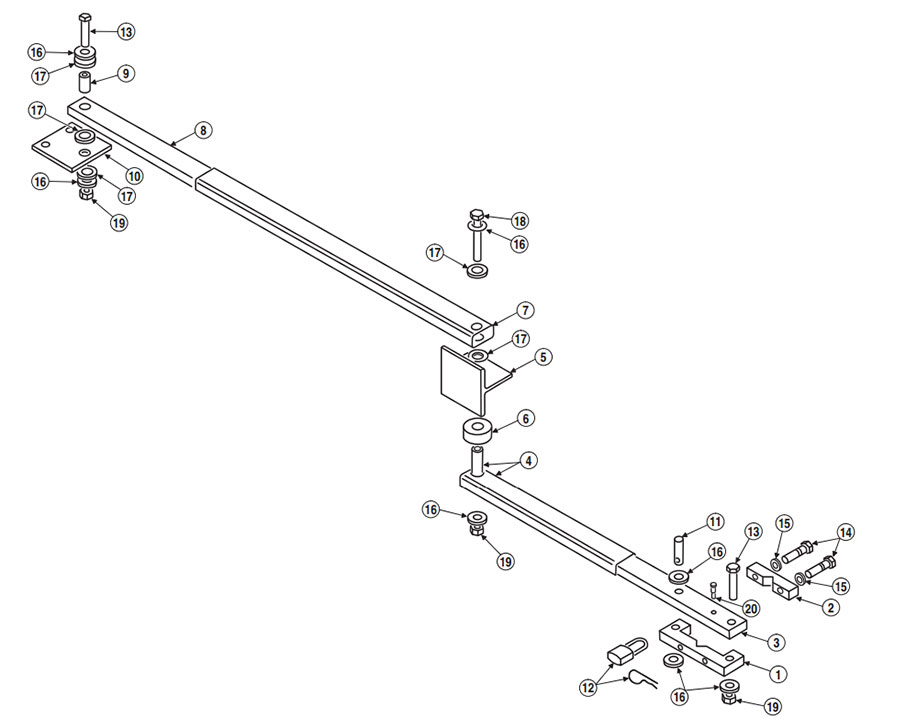

Part Diagram Linear / Osco 2100-2068 Threaded Crank Block Linear / Osco 2100-2069 V-Block for Crank Block Linear / Osco 2100-2067 Crank Extension Solid Bar Linear / Osco 2100-1924-PLT Overtravel Stop Linear / Osco 2300-969 Plastic Elbow Offset Spacer Linear / Osco 2100-2072 Gate Arm Link Tube Linear / Osco 2100-2071 Solid Link Bar Linear / Osco 2200-964 Gate Plate Tube Spacer Linear / Osco 2100-2070 Gate Plate Linear / Osco 2400-511 Disconnect Pin Linear / Osco 2400-351 Disconnect Hair Pin Linear / Osco 2400-512 Hex Head Screw (Grade 8, 1/2-13 x 2 1/2") Linear / Osco 2400-505 Hex Head Screw (Grade 8, 1/2-13 x 2") Linear / Osco 2400-513 Lockwasher (Grade 8, 1/2") Linear / Osco 2400-506 Flatwasher (Grade 8) Linear / Osco 2300-238 Nylon Washer Linear / Osco 2400-507 Nylon Insert Locknut (Grade 8, 1/2-13) Linear / Osco 2400-510 Shoulder Bolt for Rain Cap, 1/4-20 Linear / Osco 2110-810 Crank Extension and Spacer Assembly Linear / Osco 2300-238 Nylon Washer
8
Linear / Osco 2100-2071 Solid Link Bar
10
Linear / Osco 2100-2070 Gate Plate

Linear / Osco 2100-2070 Gate Plate (2100-2070)


$28.32 each

Back to top
11
Linear / Osco 2400-511 Disconnect Pin
17
Linear / Osco 2300-238 Nylon Washer

Please note some products may be discontinued or no longer available, however, we make the best effort to keep all product information up-to-date.
