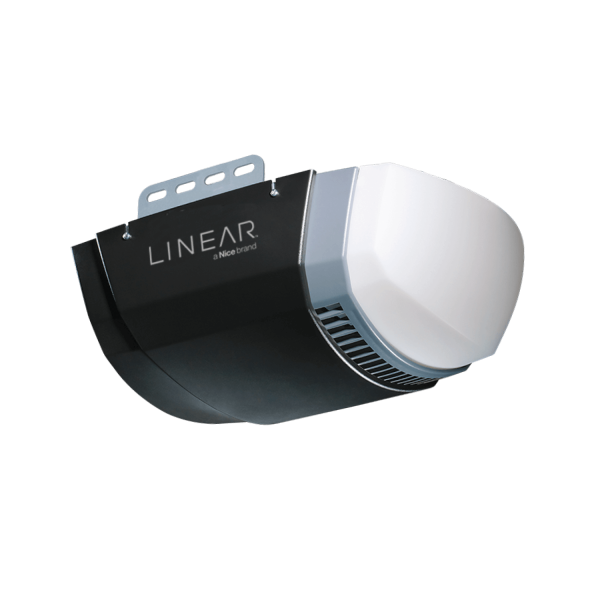

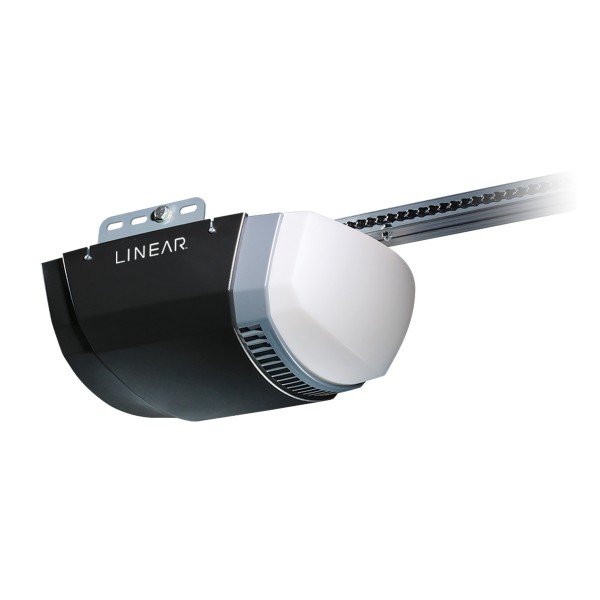

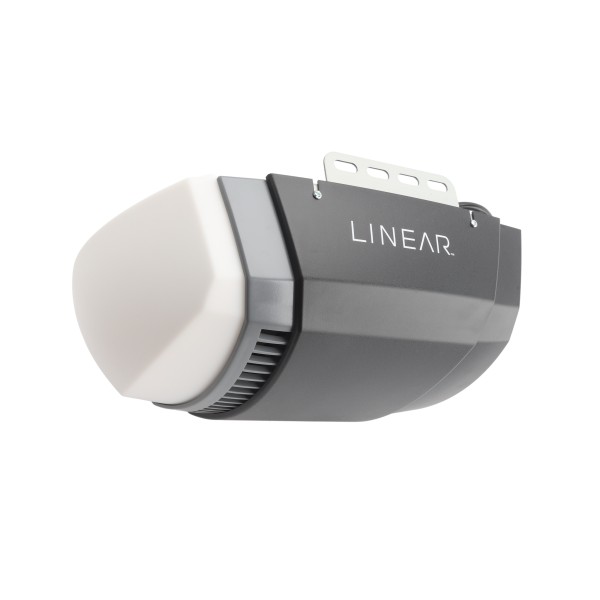

Nice Linear Single-Light Garage Door Operator w/ DC Motor & MegaCode - LDCO801

The LDCO801 Garage Door Operator delivers smooth, ultra-quiet lifting power with 800N of force and a built-in MegaCode receiver. It includes a deluxe wall station, visor remote, and optional battery backup for enhanced convenience.

Call for Pricing: (888) 378 - 1053

Part Number: LDCO801

Details

Nice Linear Single-Light Garage Door Operator w/ DC Motor & MegaCode - LDCO801

The Nice Linear LDCO801 is a high-performance garage door operator featuring a DC-powered motor that delivers the power of AC models while operating with reduced noise and smoother motion. This model supports both belt-drive and chain-drive systems and can accommodate garage doors up to 10 feet high with the proper rail. It comes equipped with a deluxe illuminated wall station, a three-button visor transmitter, and obstacle-sensing beams for added safety. Optional battery backup ensures continued operation during power loss and meets California SB-969 requirements.

Call for Pricing: (888) 378 - 1053

Features

  • 800N DC motor for strong, smooth lifting on heavy doors
  • Single-light 100W courtesy lamp (bulb not included)
  • Compatible with 7’, 8’, and 10’ belt or chain drive rails (sold separately)
  • Variable speed operation with low-energy consumption
  • Built-in MegaCode format receiver for secure access
  • Optional CA SB-969 compliant battery backup
  • Self-diagnostic and self-adjusting system for reliable function

Specifications

  • Motor Type: DC-powered
  • Lifting Force: 800 Newtons
  • Lighting: 100W single-lamp courtesy light
  • Rail Compatibility: 7’, 8’, 10’ (HBT/HCT series - sold separately)
  • Headroom Clearance Required: 1.5 inches
  • Installed Length with 7′ rail: 124.5 inches
  • Installed Length with 8′ rail: 139 inches
  • Maximum Door Height (with compatible rail): 10 feet
Prefer to Call? (888) 378-1053

Questions about part number LDCO801?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU LDCO801
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Manufacturer Nortek / Linear LLC / Linear PRO Access / OSCO GATE
Installation Type Direct Mount
Color Black
Kit Includes Hardware
Condition New
Max Gate Weight 500 lbs
Horsepower 2 Horsepower
Data Sheet Download PDF file
Specifications Sheet Download PDF file
Installation Guide Download PDF file
Owner's Manual Download PDF file
Parts Manual Download PDF file
