BGUS-D Operator Replacement Parts

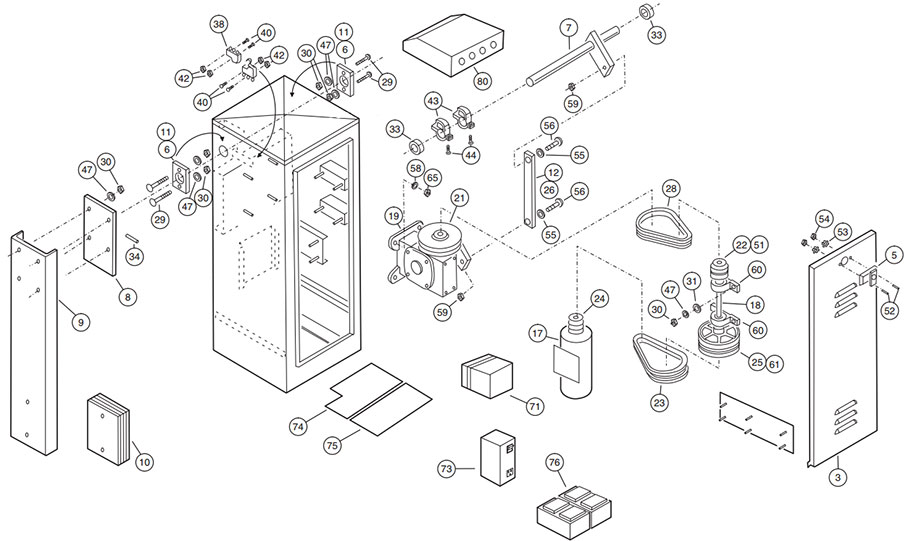

Below, you'll find a parts diagram for the Linear BGUS-D Barrier Gate Opener, followed by links to every available replacement part.

Part Diagram Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-WHT Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-YEL Linear / Osco 2110-318-WS Door Louvered with Lock BG BGU Linear / Osco 2110-318-YS Door Louvered with Lock BG BGU (Yellow, Smooth) Linear / Osco 2110-746 Bearing Block Assembly Kit Linear / Osco 2110-170 Drive Shaft Assembly Linear / Osco 2100-1886 Arm Attachment Channel Linear / Osco 2200-136 Bearing Only Linear / Osco 2110-441 Connecting Link with Bearings Linear / Osco 2510-243 Brush Replacement Kit Linear / Osco 2100-364 Intermediate Shaft, Oxided Linear / Osco 2110-117 Gear Reducer 75:1 w/ Crank Linear / Osco 2200-917 Reducer Pulley 7" Linear / Osco 2200-918 Intermediate Pulley 2" Linear / Osco 2400-178 Carriage Bolt (3/8"-16 x 1 1/2") Linear / Osco 2400-015 Hex Nut (3/8"-16) Linear / Osco 2400-017 Flat Washer (3/8") Linear / Osco 2200-314 Set Collar (1 1/4”) Linear / Osco 2400-474 Spring Pin (0.37" x 2") Linear / Osco 2200-937 V-Belt 26 4L Style Cogged Linear / Osco 2400-069 Nut #6-32 Linear / Osco 2300-028 Limit Cam Linear / Osco 2400-188 Thrust Washer Linear / Osco 2400-165 Shoulder Bolt (1/2"-13 x 2") Linear / Osco 2200-222 Pillow Block Bearing (3/4") Linear / Osco 2400-133 Key (1/4" x 1/4" x 2 1/4") Linear / Osco 2100-1804 Rear Accessory Shelf Linear / Osco 2100-1820 Front Accessory Shelf Linear / Osco 2510-182 Battery Assembly Linear / Osco 2500-1118 Battery, 12V (2 required) Linear / Osco 2400-254 Key (3/16" x 3/16" x 3") Linear / Osco 2510-423 Knob Kit Linear / Osco 2500-2411 Power Switch Only, 115 VAC and 230 VAC Linear / Osco 2500-1819 Fuse Holder Linear / Osco 2500-1748 Fuse (10 Amp, Slow-Blow) Linear / Osco 2100-2142-WS OEM Replacement Removable Enclosure Top for BGU Barrier Opener (White) Linear / Osco 2100-2142-YS OEM Replacement Removable Enclosure Top for BGU Barrier Opener (Yellow) Linear / Osco Apex Module & PWM Motor BD Assembly for Automatic Gate Operators - 2510-439 Linear / Osco 2500-2393 Replacement Apex Control Board Module Linear / Osco Apex DC Motor Board for Automatic Gate Operators - 2500-2399 Linear - Apex Mounting Plate - 2100-2104 Linear 2300-1025 Apex Clear Cover w/ Knob Linear / Osco 2510-423 Knob Kit
Linear - Latch,Draw,Bgu Top,2011 - 2100-2141

Linear - Latch,Draw,Bgu Top,2011 - 2100-2141 (2100-2141)


$23.25 each

Back to top
1b
Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-YEL

Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-YEL (2110-839-YEL)


$778.67 each

Back to top
Linear / Osco 2400-032 Hex Nut #10-32

Linear / Osco 2400-032 Hex Nut #10-32 (2400-032)


$0.40 each

Back to top
1a
Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-WHT

Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-WHT (2110-839-WHT)


$778.67 each

Back to top
Linear / Osco 2400-238 Key (3/16" x 3/16" x 1 1/4")

Linear / Osco 2400-238 Key (3/16" x 3/16" x 1 1/4") (2400-238)


$0.94 each

Back to top
2a
Linear / Osco 2100-2142-WS Removable Enclosure Top (White)

Linear / Osco 2100-2142-WS OEM Replacement Removable Enclosure Top for BGU Barrier Opener (White) (2100-2142-WS)


$236.15 each

Back to top
2b
Linear / Osco 2100-2142-YS Removable Enclosure Top (Yellow)

Linear / Osco 2100-2142-YS OEM Replacement Removable Enclosure Top for BGU Barrier Opener (Yellow) (2100-2142-YS)


$236.15 each

Back to top
Harness Complete BGU-D Apex

Harness Complete BGU-D Apex (2520-524)


$124.75 each

Back to top
3a
Linear / Osco 2110-318-WS Door Louvered with Lock BG BGU

Linear / Osco 2110-318-WS Door Louvered with Lock BG BGU (2110-318-WS)


$237.40 each

Back to top
3b
Linear / Osco 2110-318-YS Door Louvered with Lock BG BGU (Yellow, Smooth)

Linear / Osco 2110-318-YS Door Louvered with Lock BG BGU (Yellow, Smooth) (2110-318-YS)


$237.40 each

Back to top
6
Linear / Osco 2110-746 Bearing Block Assembly Kit

Linear / Osco 2110-746 Bearing Block Assembly Kit (2110-746)


$54.76 each

Back to top
7
Linear / Osco 2110-170 Drive Shaft Assembly

Linear / Osco 2110-170 Drive Shaft Assembly (2110-170)


$91.31 each

Back to top
9
Linear / Osco 2100-1886 Arm Attachment Channel

Linear / Osco 2100-1886 Arm Attachment Channel (2100-1886)


$22.02 each

Back to top
11
Linear / Osco 2200-136 Bearing Only

Linear / Osco 2200-136 Bearing Only (2200-136)


$5.67 each

Back to top
12
2110-441 Link Connecting Assy Bg Brtznc

Linear / Osco 2110-441 Connecting Link with Bearings (2110-441)


$47.44 each

Back to top
17
Linear / Osco 2510-243 Brush Replacement Kit

Linear / Osco 2510-243 Brush Replacement Kit (2510-243)


$105.32 each

Back to top
18
Linear / Osco 2100-364 Intermediate Shaft, Oxided

Linear / Osco 2100-364 Intermediate Shaft, Oxided (2100-364)


$76.40 each

Back to top
19
Linear / Osco 2110-117 Gear Reducer 75:1 w/ Crank

Linear / Osco 2110-117 Gear Reducer 75:1 w/ Crank (2110-117)


$1,179.64 each

Back to top
21
Linear / Osco 2200-917 Reducer Pulley 7"

Linear / Osco 2200-917 Reducer Pulley 7" (2200-917)


$106.76 each

Back to top
22
Linear / Osco 2200-918 Intermediate Pulley 2"

Linear / Osco 2200-918 Intermediate Pulley 2" (2200-918)


$35.45 each

Back to top
28
Linear / Osco 2200-937 V-Belt 26 4L Style Cogged

Linear / Osco 2200-937 V-Belt 26 4L Style Cogged (2200-937)


$27.17 each

Back to top
29
Linear / Osco 2400-178 Carriage Bolt (3/8"-16 x 1 1/2")

Linear / Osco 2400-178 Carriage Bolt (3/8"-16 x 1 1/2") (2400-178)


$1.04 each

Back to top
30
Hex Nut - Linear 2400-015

Linear / Osco 2400-015 Hex Nut (3/8"-16) (2400-015)


$0.21 each

Back to top
31
Linear / Osco 2400-017 Flat Washer (3/8")

Linear / Osco 2400-017 Flat Washer (3/8") (2400-017)


$0.83 each

Back to top
33
Linear / Osco 2200-314 Set Collar (1 1/4”)

Linear / Osco 2200-314 Set Collar (1 1/4”) (2200-314)


$11.33 each

Back to top
34
Linear / Osco 2400-474 Spring Pin (0.37" x 2")

Linear / Osco 2400-474 Spring Pin (0.37" x 2") (2400-474)


$3.60 each

Back to top
42
Linear / Osco 2400-069 Nut #6-32

Linear / Osco 2400-069 Nut #6-32 (2400-069)


$0.40 each

Back to top
43
Cam Nylon Limit Bg

Linear / Osco 2300-028 Limit Cam (2300-028)


$25.96 each

Back to top
51
Linear / Osco 2400-254 Key (3/16" x 3/16" x 3")

Linear / Osco 2400-254 Key (3/16" x 3/16" x 3") (2400-254)


$1.74 each

Back to top
55
Linear / Osco 2400-188 Thrust Washer

Linear / Osco 2400-188 Thrust Washer (2400-188)


$2.14 each

Back to top
56
Linear / Osco 2400-165 Shoulder Bolt (1/2"-13 x 2")

Linear / Osco 2400-165 Shoulder Bolt (1/2"-13 x 2") (2400-165)


$11.33 each

Back to top
60
Linear / Osco 2200-222 Pillow Block Bearing (3/4")

Linear / Osco 2200-222 Pillow Block Bearing (3/4") (2200-222)


$101.82 each

Back to top
61
Linear / Osco 2400-133 Key (1/4" x 1/4" x 2 1/4")

Linear / Osco 2400-133 Key (1/4" x 1/4" x 2 1/4") (2400-133)


$0.83 each

Back to top
73b
Switch Rocker Power Apex

Linear / Osco 2500-2411 Power Switch Only, 115 VAC and 230 VAC (2500-2411)


$11.33 each

Back to top
73c
Linear / Osco 2500-1819 Fuse Holder

Linear / Osco 2500-1819 Fuse Holder (2500-1819)


$17.00 each

Back to top
73d
Linear / Osco 2500-1748 Fuse (10 Amp, Slow-Blow)

Linear / Osco 2500-1748 Fuse (10 Amp, Slow-Blow) (2500-1748)


$2.48 each

Back to top
74
Linear / Osco 2100-1804 Rear Accessory Shelf

Linear / Osco 2100-1804 Rear Accessory Shelf (2100-1804)


$12.31 each

Back to top
75
Linear / Osco 2100-1820 Front Accessory Shelf

Linear / Osco 2100-1820 Front Accessory Shelf (2100-1820)


$7.11 each

Back to top
76a
Linear / Osco 2510-182 Battery Assembly

Linear / Osco 2510-182 Battery Assembly (2510-182)


$158.34 each

Back to top
76b
Linear / Osco 2500-1118 Battery, 12V (2 required)

Linear / Osco 2500-1118 Battery, 12V (2 required) (2500-1118)


$38.99 each

Back to top
80a
Linear / Osco Apex Module & PWM Motor BD Assembly for Automatic Gate Operators - 2510-439

Linear / Osco Apex Module & PWM Motor BD Assembly for Automatic Gate Operators - 2510-439 (2510-439)


$475.12 each

Back to top
80b
Linear / Osco 2500-2393 Replacement Apex Control Board Module

Linear / Osco 2500-2393 Replacement Apex Control Board Module (2500-2393)


$521.47 each

Back to top
80c
Linear / Osco Apex DC Motor Board for Automatic Gate Operators - 2500-2399

Linear / Osco Apex DC Motor Board for Automatic Gate Operators - 2500-2399 (2500-2399)


$168.02 each

Back to top
80d
Linear - Apex Mounting Plate - 2100-2104

Linear - Apex Mounting Plate - 2100-2104 (2100-2104)


$29.88 each

Back to top
80e
Linear 2300-1025 Apex Clear Cover w/ Knob

Linear 2300-1025 Apex Clear Cover w/ Knob (2300-1025)


$13.76 each

Back to top
80f
Linear / Osco 2510-423 Knob Kit

Linear / Osco 2510-423 Knob Kit (2510-423)


$7.92 each

Back to top

Back to top


Please note some products may be discontinued or no longer available, however, we make the best effort to keep all product information up-to-date.
