VS-GSLG Operator Replacement Parts

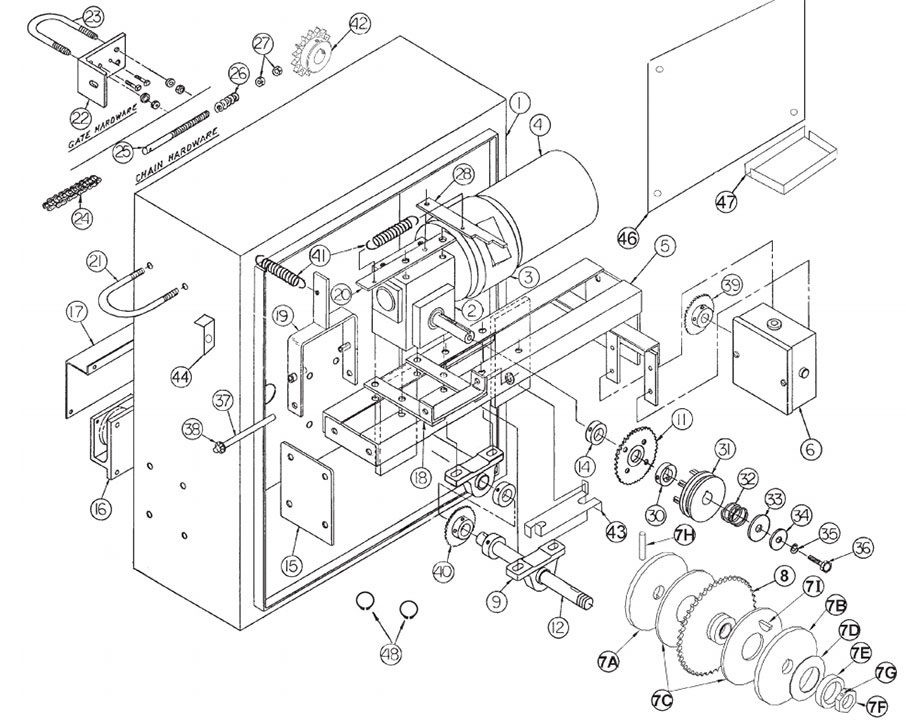

We believe it shouldn't be hard to find replacement parts for anything. Below we've included a parts diagram for the VS-GSLG slide gate operator, followed by links to every available replacement part.

Part Diagram Linear / Osco 2120-144-BT Enclosure without Door Linear / Osco 2110-265 Rail Assembly Linear / Osco 2100-573 Spacer Plate Linear / Osco 2400-501 Retaining Ring Linear / Osco 2200-274 Pillow Block Bearing (1 Linear / Osco 2100-1737 Pillow Block Retaining Plate Linear / Osco 2200-042 Sprocket (48-B-15, 1" Bore) Linear / Osco 2100-1650 Plate with Solid Pin Groove Linear / Osco 2100-1661 Keyed Plate Linear / Osco 2300-390 Friction Disc (Pair) Linear / Osco 2200-817 Belleville Washer Linear / Osco 2100-1621 Belleville Washer Retaining Disc Linear / Osco 2400-407 Brass Tipped Set Screw Linear / Osco 2100-1622 Adjustment Nut Linear / Osco 2400-416 Dowel Pin Linear / Osco 2100-529 Woodruff Key Linear / Osco 2210-004 Sprocket (40-A-48, with Bearing) Linear / Osco 2100-551 Fulcrum Rod (1/4") Linear / Osco 2110-362 Shifter Lever Fulcrum Assembly Linear / Osco 2100-551 Fulcrum Rod (1/4") Linear / Osco 2400-169 Push-On Nut (1/4") Linear / Osco 2100-1133 Locking Lever Plate Linear / Osco 2100-910 Latch Handle Linear / Osco 2200-291 Disconnect Spring Linear / Osco 2200-014 Shaft Collar (1" Bore, 3/8" LTB) Linear / Osco 2110-364 Sprocket (40-A-24, with Bearing) Linear / Osco 2200-549 Disconnect Collar, 1" (Keyed) Linear / Osco 2200-115 Disconnect Spring Linear / Osco 2400-308 Fender Washer (3/8") Linear / Osco 2400-017 Flat Washer (3/8") Linear / Osco 2400-016 Lock Washer (3/8") Linear / Osco 2400-207 HHCS (3/8"-16 x 2 1/2") Linear / Osco 2110-700 Idler Wheel Assembly For Large Linear Slide Gate Openers Linear / Osco 2100-657-BT Rain Cover Linear / Osco 2200-221 #50 Roller Chain (per ft) Linear / Osco 2200-306 Clutch Spring for Linear HSLG Linear / Osco 2100-2007 Gate Attachment Bracket Linear / Osco 2400-090 Hex Nut (1/2"-13) Linear / Osco 2400-170 U-Bolt (3 Linear / Osco 2400-038 U-Bolt (4") Linear / Osco 2 HP, 208/230/460V, 3 Phase Motor for Automatic Gate Operators - 2500-372 Linear / Osco 2120-388 Torque Limiter Assembly Linear / Osco 2120-132 Shifter Lever
Linear / Osco 2100-1731 Idler Pin

Linear / Osco 2100-1731 Idler Pin (2100-1731)


$4.94 each

Back to top
1
Linear / Osco 2120-144-BT Enclosure without Door

Linear / Osco 2120-144-BT Enclosure without Door (2120-144-BT)


$716.23 each

Back to top
Linear / Osco 2100-756 Limit Box Cover only

Linear / Osco 2100-756 Limit Box Cover only (2100-756)


$11.52 each

Back to top
Linear / Osco 2110-363 Gear Reducer/Disconnect Assembly

Linear / Osco 2110-363 Gear Reducer/Disconnect Assembly (2110-363)


$856.66 each

Back to top
4b
Linear / Osco 2 HP, 208/230/460V, 3 Phase Motor for Automatic Gate Operators - 2500-372

Linear / Osco 2 HP, 208/230/460V, 3 Phase Motor for Automatic Gate Operators - 2500-372 (2500-372)


$846.49 each

Back to top
Linear / Osco 2120-359-BT Enclosure Assembly Complete with Door

Linear / Osco 2120-359-BT Enclosure Assembly Complete with Door (2120-359-BT)


$896.30 each

Back to top
5
Linear / Osco 2110-265 Rail Assembly

Linear / Osco 2110-265 Rail Assembly (2110-265)


$224.54 each

Back to top
Linear / Osco 2200-006 #40 Chain Master Link

Linear / Osco 2200-006 #40 Chain Master Link (2200-006)


$2.48 each

Back to top
7
Linear / Osco 2120-388 Torque Limiter Assembly

Linear / Osco 2120-388 Torque Limiter Assembly (2120-388)


$289.10 each

Back to top
7A
Linear / Osco 2100-1650 Plate with Solid Pin Groove

Linear / Osco 2100-1650 Plate with Solid Pin Groove (2100-1650)


$49.21 each

Back to top
7B
Linear / Osco 2100-1661 Keyed Plate

Linear / Osco 2100-1661 Keyed Plate (2100-1661)


$39.33 each

Back to top
7C
Linear / Osco 2300-390 Friction Disc (Pair)

Linear / Osco 2300-390 Friction Disc (Pair) (2300-390)


$49.93 each

Back to top
7D
Linear / Osco 2200-817 Belleville Washer

Linear / Osco 2200-817 Belleville Washer (2200-817)


$19.26 each

Back to top
7E
Linear / Osco 2100-1621 Belleville Washer Retaining Disc

Linear / Osco 2100-1621 Belleville Washer Retaining Disc (2100-1621)


$49.82 each

Back to top
7F
Linear / Osco 2100-1622 Adjustment Nut

Linear / Osco 2100-1622 Adjustment Nut (2100-1622)


$3.60 each

Back to top
7G
Linear / Osco 2400-407 Brass Tipped Set Screw

Linear / Osco 2400-407 Brass Tipped Set Screw (2400-407)


$2.25 each

Back to top
7H
Linear / Osco 2400-416 Dowel Pin

Linear / Osco 2400-416 Dowel Pin (2400-416)


$7.11 each

Back to top
7I
Linear / Osco 2100-529 Woodruff Key

Linear / Osco 2100-529 Woodruff Key (2100-529)


$2.06 each

Back to top
8
Linear / Osco 2210-004 Sprocket (40-A-48, with Bearing)

Linear / Osco 2210-004 Sprocket (40-A-48, with Bearing) (2210-004)


$91.22 each

Back to top
9
Linear / Osco 2200-274 Pillow Block Bearing (1" Diameter)

Linear / Osco 2200-274 Pillow Block Bearing (1" Diameter) (2200-274)


$92.14 each

Back to top
Linear / Osco 2200-041 Sprocket (48-B-15, 1/2" Bore)

Linear / Osco 2200-041 Sprocket (48-B-15, 1/2" Bore) (2200-041)


$24.30 each

Back to top
11
Linear / Osco 2110-364 Sprocket (40-A-24, with Bearing)

Linear / Osco 2110-364 Sprocket (40-A-24, with Bearing) (2110-364)


$35.62 each

Back to top
Linear / Osco 2200-200 #48 Roller Chain (27 Links)

Linear / Osco 2200-200 #48 Roller Chain (27 Links) (2200-200)


$8.96 each

Back to top
Linear / Osco 2200-276 Limit Sprocket (48-B-20, 1/2" Bore)

Linear / Osco 2200-276 Limit Sprocket (48-B-20, 1/2" Bore) (2200-276)


$27.59 each

Back to top
14
Linear / Osco 2200-014 Shaft Collar (1" Bore, 3/8" LTB)

Linear / Osco 2200-014 Shaft Collar (1" Bore, 3/8" LTB) (2200-014)


$6.90 each

Back to top
15
Linear / Osco 2100-573 Spacer Plate

Linear / Osco 2100-573 Spacer Plate (2100-573)


$12.97 each

Back to top
16
Linear / Osco 2110-700 Idler Wheel Assembly For Large Linear Slide Gate Openers

Linear / Osco 2110-700 Idler Wheel Assembly For Large Linear Slide Gate Openers (2110-700)


$82.47 each

Back to top
17
Linear / Osco 2100-657-BT Rain Cover

Linear / Osco 2100-657-BT Rain Cover (2100-657-BT)


$33.96 each

Back to top
18
Linear / Osco 2110-362 Shifter Lever Fulcrum Assembly

Linear / Osco 2110-362 Shifter Lever Fulcrum Assembly (2110-362)


$36.54 each

Back to top
19
Linear / Osco 2120-132 Shifter Lever

Linear / Osco 2120-132 Shifter Lever (2120-132)


$51.68 each

Back to top
20
Linear / Osco 2100-1133 Locking Lever Plate

Linear / Osco 2100-1133 Locking Lever Plate (2100-1133)


$21.02 each

Back to top
21
Linear / Osco 2400-038 U-Bolt (4")

Linear / Osco 2400-038 U-Bolt (4") (2400-038)


$6.90 each

Back to top
22
Linear / Osco 2100-2007 Gate Attachment Bracket

Linear / Osco 2100-2007 Gate Attachment Bracket (2100-2007)


$26.04 each

Back to top
23
Linear / Osco 2400-170 U-Bolt (3")

Linear / Osco 2400-170 U-Bolt (3") (2400-170)


$4.54 each

Back to top
24
Linear / Osco 2200-221 #50 Roller Chain

Linear / Osco 2200-221 #50 Roller Chain (per ft) (2200-221)


$8.56 each

Back to top
Linear / Osco 2520-453 Rotary Limit Box Assembly

Linear / Osco 2520-453 Rotary Limit Box Assembly (2520-453)


$249.97 each

Back to top
26
Linear / Osco 2200-306 Clutch Spring

Linear / Osco 2200-306 Clutch Spring for Linear HSLG (2200-306)


$5.35 each

Back to top
27
Linear / Osco 2400-090 Hex Nut (1/2"-13)

Linear / Osco 2400-090 Hex Nut (1/2"-13) (2400-090)


$0.83 each

Back to top
28
Linear / Osco 2100-910 Latch Handle

Linear / Osco 2100-910 Latch Handle (2100-910)


$10.61 each

Back to top
30
Linear / Osco 2200-549 Disconnect Collar, 1" (Keyed)

Linear / Osco 2200-549 Disconnect Collar, 1" (Keyed) (2200-549)


$10.50 each

Back to top
32
Linear / Osco 2200-115 Disconnect Spring

Linear / Osco 2200-115 Disconnect Spring (2200-115)


$10.61 each

Back to top
33
Linear / Osco 2400-308 Fender Washer (3/8")

Linear / Osco 2400-308 Fender Washer (3/8") (2400-308)


$0.48 each

Back to top
34
Linear / Osco 2400-017 Flat Washer (3/8")

Linear / Osco 2400-017 Flat Washer (3/8") (2400-017)


$0.83 each

Back to top
35
Linear / Osco 2400-016 Lock Washer (3/8")

Linear / Osco 2400-016 Lock Washer (3/8") (2400-016)


$0.83 each

Back to top
36
Linear / Osco 2400-207 HHCS (3/8"-16 x 2 1/2")

Linear / Osco 2400-207 HHCS (3/8"-16 x 2 1/2") (2400-207)


$0.83 each

Back to top
37
Linear / Osco 2100-551 Fulcrum Rod (1/4")

Linear / Osco 2100-551 Fulcrum Rod (1/4") (2100-551)


$8.86 each

Back to top
38
Linear / Osco 2400-169 Push-On Nut (1/4")

Linear / Osco 2400-169 Push-On Nut (1/4") (2400-169)


$0.40 each

Back to top
40
Linear / Osco 2200-042 Sprocket (48-B-15, 1" Bore)

Linear / Osco 2200-042 Sprocket (48-B-15, 1" Bore) (2200-042)


$35.62 each

Back to top
41
Linear / Osco 2200-291 Disconnect Spring

Linear / Osco 2200-291 Disconnect Spring (2200-291)


$4.54 each

Back to top
43
Linear / Osco 2100-1737 Pillow Block Retaining Plate

Linear / Osco 2100-1737 Pillow Block Retaining Plate (2100-1737)


$9.58 each

Back to top
48
Linear / Osco 2400-501 Retaining Ring

Linear / Osco 2400-501 Retaining Ring (2400-501)


$2.06 each

Back to top

Back to top


Please note some products may be discontinued or no longer available, however, we make the best effort to keep all product information up-to-date.
