BGU-D Operator Replacement Parts

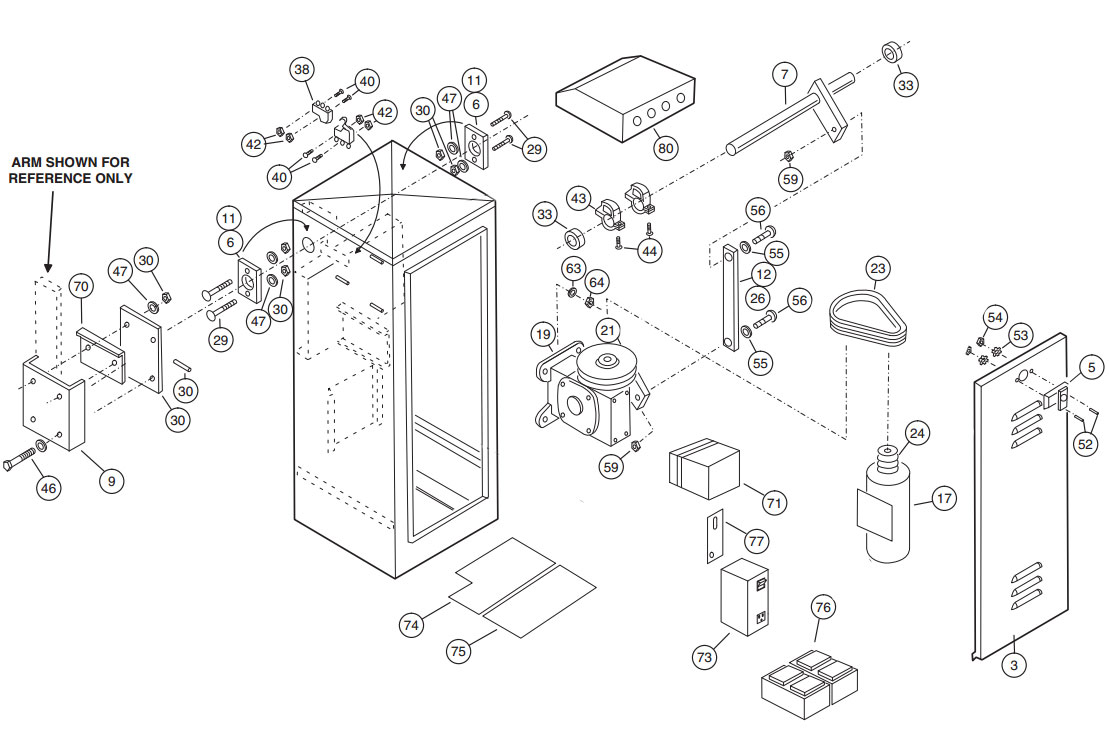

To make it as easy as possible to find the part you need, we've built this Linear replacement part finder. Below you'll find a parts diagram for the BGU-D Barrier Gate Opener with links to every available replacement part.

Part Diagram Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-WHT Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-YEL Linear / Osco 2100-2142-WS Removable Enclosure Top (White) Linear / Osco 2100-2142-YS Removable Enclosure Top (Yellow) Linear / Osco 2110-318-WS Door Louvered with Lock BG BGU Linear / Osco 2110-318-YS Door Louvered with Lock BG BGU (Yellow, Smooth) Linear / Osco 2220-008 Lock Assembly with Keys Linear / Osco 2110-746 Bearing Block Assembly Kit Linear / Osco 2110-170 Drive Shaft Assembly Linear / Osco 2100-1886 Arm Attachment Channel Linear / Osco 2200-898 Bearing Linear / Osco 2110-441 Connecting Link with Bearings Linear / Osco 2100-388 Reducer Pulley, 5" (12' Arm) Linear / Osco 2200-929 V-Belt, Cogged (24") Linear / Osco 2400-183 Carriage Bolt (3/8"-16 x 1") Linear / Osco 2200-136 Bearing Only Linear / Osco 2200-314 Set Collar (1 1/4”) Linear / Osco 2500-764 Limit Switch Linear / Osco 2300-028 Limit Cam Linear / Osco 2400-188 Thrust Washer Linear / Osco 2400-165 Shoulder Bolt (1/2"-13 x 2") Linear / Osco 2100-1670 Arm Flange Bracket with Cutting Edge Linear / Osco 2510-418 Transformer Assembly Linear / Osco 2200-667 Gear Reducer 60:1 - Canimex Linear / Osco 2100-1804 Rear Accessory Shelf Linear / Osco 2100-1820 Front Accessory Shelf Linear / Osco 2510-182 Battery Assembly Linear / Osco 2500-1118 Battery, 12V (2 required) Linear / Osco 2510-423 Knob Kit Linear / Osco 2500-2411 Power Switch Only, 115 VAC and 230 VAC Linear / Osco 2500-1819 Fuse Holder Linear / Osco 2500-1748 Fuse (10 Amp, Slow-Blow) Linear / Osco 2510-243 Brush Replacement Kit
Linear - Apex Mounting Plate - 2100-2104

Linear - Apex Mounting Plate - 2100-2104 (2100-2104)


$29.88 each

Back to top
Linear / Osco Motor Mounting Bracket for Automatic Gate Operators - 2110-621

Linear / Osco Motor Mounting Bracket for Automatic Gate Operators - 2110-621 (2110-621)


$63.91 each

Back to top
1a
Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-WHT

Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-WHT (2110-839-WHT)


$778.67 each

Back to top
1b
Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-YEL

Linear - Enclosure Bgu Wrapper W/O Door&Top - 2110-839-YEL (2110-839-YEL)


$778.67 each

Back to top
2a
Linear / Osco 2100-2142-WS Removable Enclosure Top (White)

Linear / Osco 2100-2142-WS Removable Enclosure Top (White) (2100-2142-WS)


$236.15 each

Back to top
2b
Linear / Osco 2100-2142-YS Removable Enclosure Top (Yellow)

Linear / Osco 2100-2142-YS Removable Enclosure Top (Yellow) (2100-2142-YS)


$236.15 each

Back to top
Linear 2300-1025 Apex Clear Cover w/ Knob

Linear 2300-1025 Apex Clear Cover w/ Knob (2300-1025)


$13.76 each

Back to top
Linear / Osco 2400-474 Spring Pin (0.37" x 2")

Linear / Osco 2400-474 Spring Pin (0.37" x 2") (2400-474)


$3.60 each

Back to top
3a
Linear / Osco 2110-318-WS Door Louvered with Lock BG BGU

Linear / Osco 2110-318-WS Door Louvered with Lock BG BGU (2110-318-WS)


$237.40 each

Back to top
3b
Linear / Osco 2110-318-YS Door Louvered with Lock BG BGU (Yellow, Smooth)

Linear / Osco 2110-318-YS Door Louvered with Lock BG BGU (Yellow, Smooth) (2110-318-YS)


$237.40 each

Back to top
Linear / Osco 2500-2393 Replacement Apex Control Board Module

Linear / Osco 2500-2393 Replacement Apex Control Board Module (2500-2393)


$521.47 each

Back to top
5
Linear / Osco 2220-008 Lock Assembly with Keys

Linear / Osco 2220-008 Lock Assembly with Keys (2220-008)


$59.40 each

Back to top
6
Linear / Osco 2110-746 Bearing Block Assembly Kit

Linear / Osco 2110-746 Bearing Block Assembly Kit (2110-746)


$54.76 each

Back to top
7
Linear / Osco 2110-170 Drive Shaft Assembly

Linear / Osco 2110-170 Drive Shaft Assembly (2110-170)


$91.31 each

Back to top
Harness Complete BGU-D Apex

Harness Complete BGU-D Apex (2520-524)


$180.80 each

Back to top
9
Linear / Osco 2100-1886 Arm Attachment Channel

Linear / Osco 2100-1886 Arm Attachment Channel (2100-1886)


$22.02 each

Back to top
11
Linear / Osco 2200-898 Bearing only

Linear / Osco 2200-898 Bearing (2200-898)


$10.41 each

Back to top
12
2110-441 Link Connecting Assy Bg Brtznc

Linear / Osco 2110-441 Connecting Link with Bearings (2110-441)


$47.44 each

Back to top
17
Linear / Osco 2510-243 Brush Replacement Kit

Linear / Osco 2510-243 Brush Replacement Kit (2510-243)


$105.32 each

Back to top
19b
Linear / Osco 2200-667 Gear Reducer 60:1 - Canimex

Linear / Osco 2200-667 Gear Reducer 60:1 - Canimex (2200-667)


$593.52 each

Back to top
21
Reducer Pulley - Linear 2100-388

Linear / Osco 2100-388 Reducer Pulley, 5" (12' Arm) (2100-388)


$26.58 each

Back to top
23
Linear / Osco 2200-929 V-Belt, Cogged (24")

Linear / Osco 2200-929 V-Belt, Cogged (24") (2200-929)


$27.17 each

Back to top
26
Linear / Osco 2200-136 Bearing Only

Linear / Osco 2200-136 Bearing Only (2200-136)


$5.67 each

Back to top
29
Linear / Osco 2400-183 Carriage Bolt (3/8"-16 x 1")

Linear / Osco 2400-183 Carriage Bolt (3/8"-16 x 1") (2400-183)


$0.83 each

Back to top
33
Linear / Osco 2200-314 Set Collar (1 1/4”)

Linear / Osco 2200-314 Set Collar (1 1/4”) (2200-314)


$11.33 each

Back to top
38
Linear / Osco 2500-764 Limit Switch

Linear / Osco 2500-764 Limit Switch (2500-764)


$38.82 each

Back to top
43
Cam Nylon Limit Bg

Linear / Osco 2300-028 Limit Cam (2300-028)


$25.96 each

Back to top
55
Linear / Osco 2400-188 Thrust Washer

Linear / Osco 2400-188 Thrust Washer (2400-188)


$2.14 each

Back to top
56
Linear / Osco 2400-165 Shoulder Bolt (1/2"-13 x 2")

Linear / Osco 2400-165 Shoulder Bolt (1/2"-13 x 2") (2400-165)


$11.33 each

Back to top
70
Linear / Osco 2100-1670 Arm Flange Bracket with Cutting Edge

Linear / Osco 2100-1670 Arm Flange Bracket with Cutting Edge (2100-1670)


$4.94 each

Back to top
71
Linear / Osco 2510-418 Transformer Assembly

Linear / Osco 2510-418 Transformer Assembly (2510-418)


$338.50 each

Back to top
73a
Linear / Osco 2510-423 Knob Kit

Linear / Osco 2510-423 Knob Kit (2510-423)


$7.92 each

Back to top
73b
Switch Rocker Power Apex

Linear / Osco 2500-2411 Power Switch Only, 115 VAC and 230 VAC (2500-2411)


$11.33 each

Back to top
73c
Linear / Osco 2500-1819 Fuse Holder

Linear / Osco 2500-1819 Fuse Holder (2500-1819)


$17.00 each

Back to top
73d
Linear / Osco 2500-1748 Fuse (10 Amp, Slow-Blow)

Linear / Osco 2500-1748 Fuse (10 Amp, Slow-Blow) (2500-1748)


$2.48 each

Back to top
74
Linear / Osco 2100-1804 Rear Accessory Shelf

Linear / Osco 2100-1804 Rear Accessory Shelf (2100-1804)


$12.31 each

Back to top
75
Linear / Osco 2100-1820 Front Accessory Shelf

Linear / Osco 2100-1820 Front Accessory Shelf (2100-1820)


$7.11 each

Back to top
76a
Linear / Osco 2510-182 Battery Assembly

Linear / Osco 2510-182 Battery Assembly (2510-182)


$158.34 each

Back to top
76b
Linear / Osco 2500-1118 Battery, 12V (2 required)

Linear / Osco 2500-1118 Battery, 12V (2 required) (2500-1118)


$38.99 each

Back to top

Back to top


Please note some products may be discontinued or no longer available, however, we make the best effort to keep all product information up-to-date.
