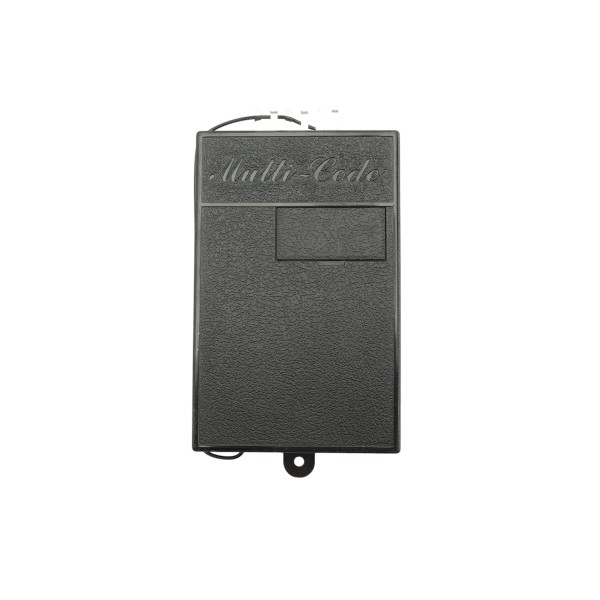

Stanley 1 Channel Receiver
Single channel 24 VAC powered receiver with connection lugs for direct attachment to three terminal garage door operators, 310MHz.
The Model 309013 1-Channel Receiver is designed for use in residential garage door operator applications. Typically the receiver mounts directly to the three terminals on the door operator. An 11-inch wire antenna extends from the receiver.
The operator supplies 24-volt power to the receiver, or the receiver can be powered by a separate 24-volt AC power transformer. Remote power accessories available for the Model 309013 include the Model 109201 Wiring Harness and the Model 109207 Wiring Harness. Both models include a plug-in transformer.
The receiver's exclusive two-way terminal lugs fit under terminal screws or can be used with push-on terminals in remote placement applications using the Model 109206 3-Wire Adapter.
The receiver is programmed with a 10-position coding switch. When a transmitter set to the same code is activated, the receiver's output will activate, triggering the door operator.
The Model 309013 is compatible with 310 MHz Stanley and Multi-Code transmitters only.
- Operates on 24 VAC power
- One channel
- Codes: 1,024 (set by dip switches)
- RF frequency: 310 MHz
- Dimensions: 3" W x 5.5" H x 1.5" D
|Manufacturer||Nortek / Linear LLC / Linear PRO Access / OSCO GATE|
