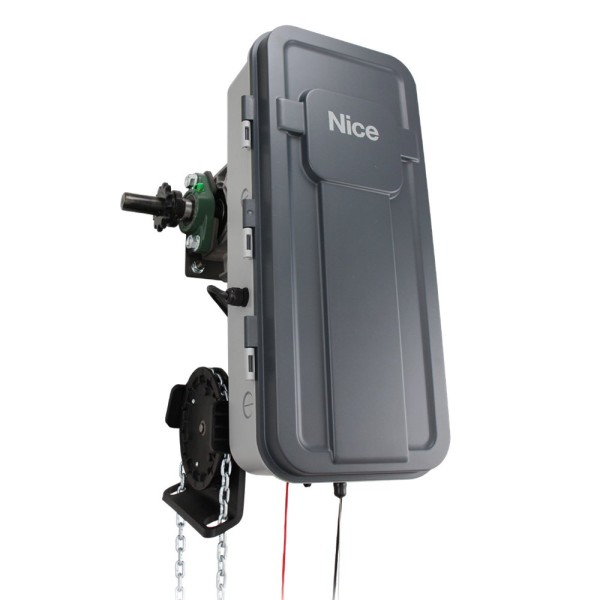

Nice Linear Extended Duty Commercial/Industrial Jackshaft with Emergency Chain Hoist - MCX-GH

All new from Linear, the MCX-GH Jackshaft operator is the ideal solution for commercial and industrial facilities in need of a modern overhead door opening solution. Featuring real time diagnostics, built-in bluetooth and wi-fi connectivity as well as a continuous duty rating, this jackshaft is both tough and efficient. Paired with the MCX Control Station, this operator is unmatched in advanced features and precise operation.

Specifications:

• 5 Year/140,000 Cycle Limited Warranty (whichever occurs first)
• 1 HP continuous duty industrial 90V DC motor with overload protection
• Extended duty: rated for up to 45 cycles per hour, 300 cycles per day
• Auto-voltage detection: accepts 120-240V 1PH and 208-240V 3PH, no jumper selection required
• 480V/600V operation with field-installable dual-voltage transformer (MV00540)
• Built-in Bluetooth and Wi-Fi
• Nice G.O. app: remote open/close, real-time status, push notifications and scheduled events
• Over-the-air (OTA) firmware updates via Wi-Fi
• NEMA 4 MCX Control Station with high-resolution display for floor-level programming
• Onboard encoder for precise position-based limit control
• Onboard fault logs and diagnostics
• Lever-based terminal connections for tool-free wiring
• Built-in chain hoist with electrical cut-out switch: handing reversible left or right in the field
• 30 ft hand chain included
• Chain keeper
• N-1 or N-4 photocells included
• For doors up to 24 ft tall (with 12- and 18-tooth sprocket configuration)
