Details

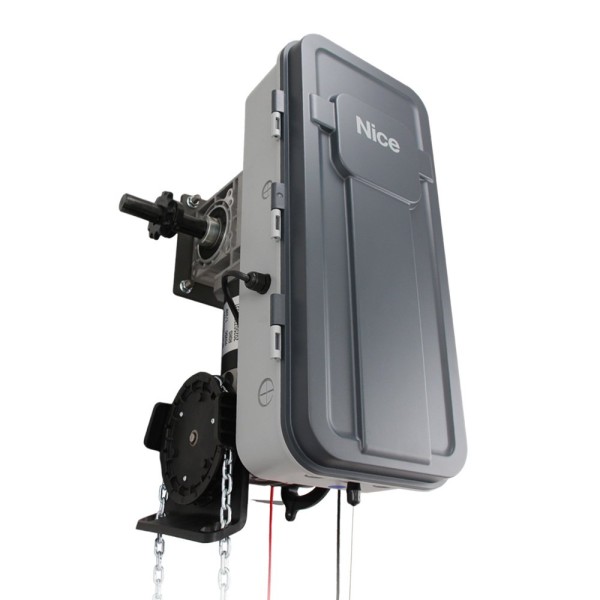

Nice Linear Continuous Duty Commercial/Industrial Jackshaft with Emergency Chain Hoist - MCX-H

A high tech commercial and industrial door opener solution, the brand new Continuous Duty Jackshaft MCX-H from Linear is the ideal way for businesses to operate their doors safely and efficiently. Featuring a quiet open with advanced features including OTA firmware updates, precise logging for security, and even bluetooth & wi-fi connectivity, the MCX-H is perfect for any high-traffic business.

Specifications:

• 5 Year/100,000 Cycle Limited Warranty (whichever occurs first)
• 1/2 HP or 1 HP continuous duty industrial 90V DC motor with overload protection
• Rated for up to 30 cycles per hour, 150 cycles per day
• Auto-voltage detection: accepts 120-240V 1PH and 208-240V 3PH, no jumper selection required
• 480V/600V operation with field-installable dual-voltage transformer
• Built-in Bluetooth and Wi-Fi
• Nice G.O. app: remote open/close, real-time status, push notifications and scheduled events
• Over-the-air (OTA) firmware updates via Wi-Fi
• NEMA 4 MCX Control Station with high-resolution display for floor-level programming
• Onboard encoder for precise position-based limit control
• Onboard fault logs and diagnostics
• Lever-based terminal connections for tool-free wiring
• Built-in chain hoist with electrical cut-out switch: handing reversible left or right in the field
• 30 ft hand chain included; additional chain packs available
• Chain keeper
• Electro-mechanical brake available as field-installable kit (MV00541)
• N-1 photocells included
• For doors up to 24 ft tall (with 12- and 18-tooth sprocket configuration)
