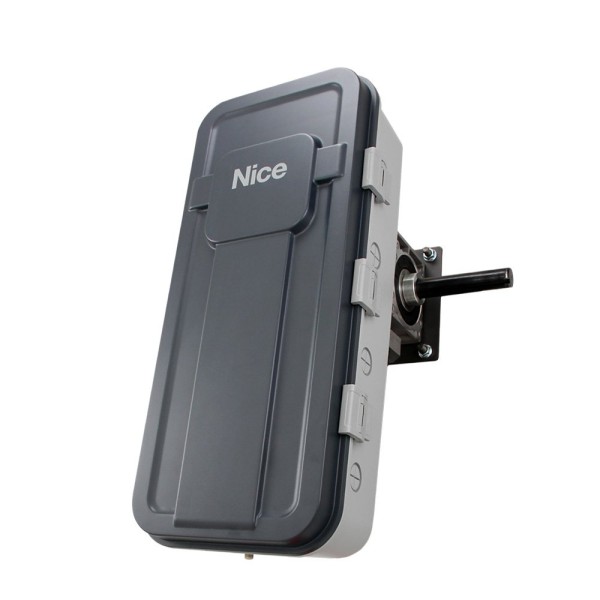

Nice Linear Continuous Duty Commercial/Industrial Jackshaft - MCX-J

Perfect for any commercial or industrial facility, the all new MCX-J Jackshaft from Linear includes high-tech features like bluetooth and wi-fi connectivity, on demand logs, and Nice G.O. compatibility. Made for quiet operation on doors up to 24' tall, this operator can enhance safety and productivity for your business!

Specifications:

• 5 Year/100,000 Cycle Limited Warranty (whichever occurs first)
• 1/2 HP continuous duty industrial 90V DC motor with overload protection
• Rated for up to 30 cycles per hour, 150 cycles per day
• Auto-voltage detection: accepts 120-240V 1PH and 208-240V 3PH, no jumper selection required
• 480V/600V operation with field-installable dual-voltage transformer (MV00540)
• Built-in Bluetooth and Wi-Fi
• Nice G.O. app: remote open/close, real-time status, push notifications and scheduled events
• Over-the-air (OTA) firmware updates via Wi-Fi
• NEMA 4 MCX Control Station with high-resolution display for floor-level programming
• Onboard encoder for precise position-based limit control
• Onboard fault logs and diagnostics
• Lever-based terminal connections for tool-free wiring
• Floor-level cable disconnect for manual operation
• N-1 photocells included
• For doors up to 24 ft tall (with 12- and 18-tooth sprocket configuration)
