Linear MCS308301 300 MHz 2 Button Multi Code Key Ring Transmitter Remote

Multi Code 2 Channel Key Ring Transmitter
Part Number: MCS308301
$25.57 each
$25.57 each
OR

Details

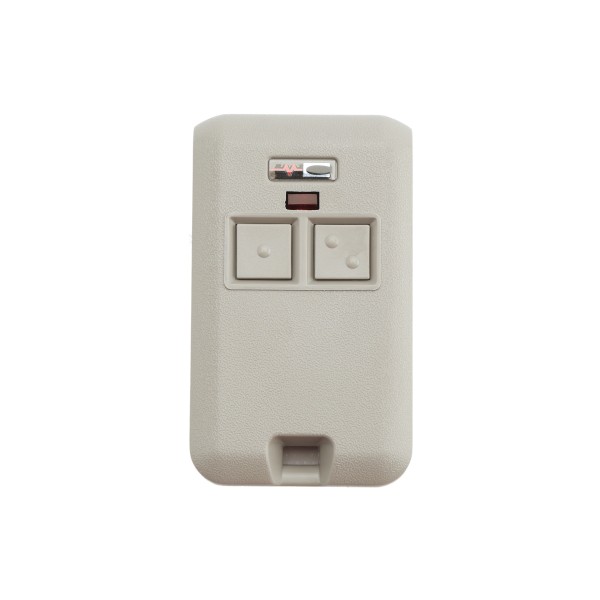

Linear MCS308301 300 MHz 2 Button Multi Code Key Ring Transmitter Remote

Miniature slim line two button, two channel key ring transmitter, 12 volt battery powered, test/operate LED, each button can send any of the 1024 selectable codes, 300MHz

The Model 308301 2-Channel Key Ring Transmitter is a miniature style transmitter designed for automatic door and gate operator applications.

This transmitter is a two-channel device. Pressing the left button on the transmitter will send a channel one signal. Pressing the right button on the transmitter will send a channel two signal. The buttons feature raised dimples for easy, or vision-impaired identification. The transmitter has a red test/operate indicator and is powered by a 12-volt battery. A molded-in hole in the case is for attaching the transmitter to a key ring.

The transmitter is Multi-Code format with two 10-position coding switches providing 1,024 possible codes for each channel. Independent coding supports activation of a common gate and a private door. The transmitter will only activate receivers set with the same code.

The Model 308301 is compatible with 300 MHz Multi-Code receivers and Model 109950 and 302850 receivers.

Features

  • Compatible with 300 MHz Multi-Code receivers
  • Easy access to battery and coding switches
  • Power: 12-volt battery
  • Codes: 1,024 codes for each channel (set by dip switches)
  • RF frequency: 300 MHz
  • Dimensions: 1.5" W x 2.5" H x 0.625" D
SKU MCS308301
Type Multi-Code/Digi-Code
UPC Code 93863105692
Manufacturer Nortek / Linear LLC / Linear PRO Access / OSCO GATE
Frequency 300 Mhz
Options Keychain
Buttons Two
Model Number 308301
Condition New
