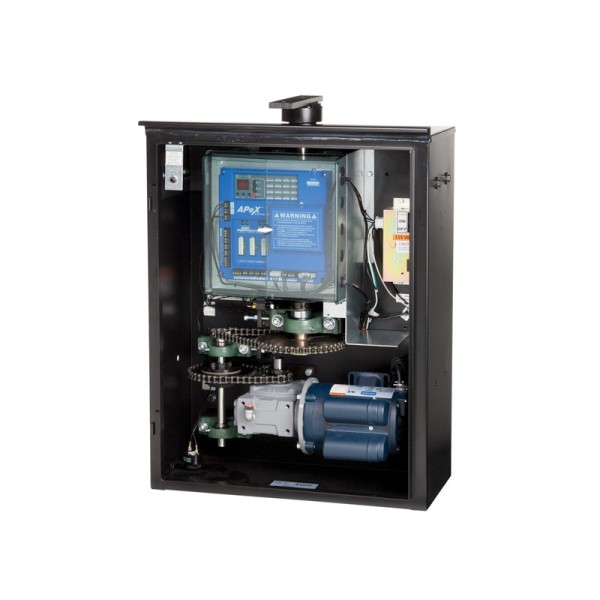

Linear SWG-111 1 HP 115 Volt 1 Phase Swing Gate Operator

Availability: In stock

$2,855.99 Click for price What's this?
OR

Quick Overview

Linear SWG-111 1 HP 115 Volt/ Single Swing Gate Operator

Linear SWG-111 1 HP 115 Volt 1 Phase Swing Gate Operator

Free shipping on all Linear gate openers

Details

The SWG-111 swing gate operator is perfect for industrial and commercial applications. This rugged gate opener features a roller chain, durable powder coated finish, and the APeX control board.

Specifications:

  • 1 HP, 115V 1 Phase
  • Max Gate Size: 26 ft, 1000 lbs
  • Drive Type: Crank
  • Maximum duty cycle: Continuous
  • Opens gates in 15 seconds
  • 5 Year Warranty

Features:

  • Integral APeX Controller
  • All voltages, single or three-phase
  • Emergency disconnect
  • Electrical power disconnect
  • Emergency stop/reset button on front cover
  • On-board APeX Controller three-button control station
  • Master/second built in
  • Durable powder coat finish
  • Right hand - left hand convertible
  • Timer to close
  • Post mount standard; pad mount optional
  • Powder coat finish
  • ETL Listed for UL 325 (Class I-IV) for U.S. and Canada

Electrical/Mechanical:

  • Duplex receptacle
  • AC and DC power available for access control accessories and reversing devices
  • All accessory connections 24 VDC
  • Easily adjustable cam-operated limit switches
  • Heavy-duty gate arm assembly with harmonic design for smoother starts and stops
  • Over-center gate arm "locking" angle
  • Heavy-duty 60:1 right-angle C-face gear reducer
  • #40 roller chain and sprockets
  • Adjustable torque limiter
  • Heavy-duty pillow-block bearings

Factory Options:

  • Optional pad mount pedestal
  • Optional cold weather package

View Specs

View Manual

Note: This operator meets the UL325 6th edition (2016) safety standard. 2 Entrapment Protection Devices are required for operation.

Warranty

Additional Information

SKU SWG-111
Manufacturer Nortek / Linear LLC / Linear PRO Access / OSCO GATE
Model SWG
Condition New
Free Shipping Yes
Max Gate Length 26 ft
Max Gate Weight 1000 lbs
Horsepower 1 Horsepower
Voltage 115v
Phase 1 Phase
Max Cycles / Hour Continuous
Opening Speed 15 Seconds
