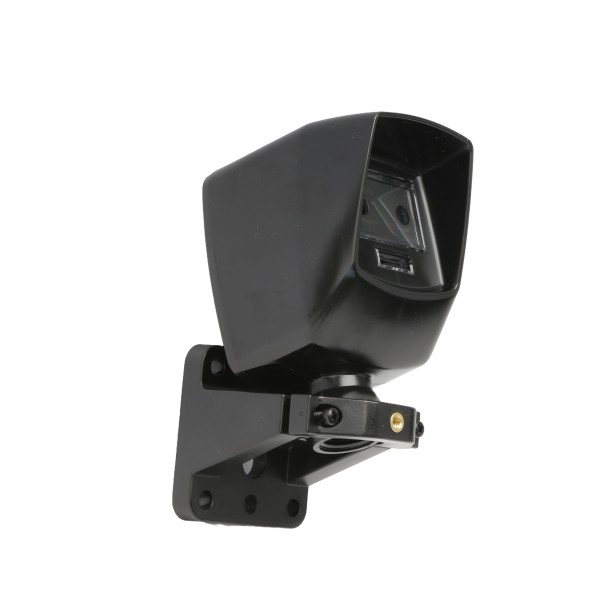

Linear/OSCO EMX Retro-Reflective Photo Eye Kit with Hood for IRB-RET2 - 620-101287

The IRB-RET2 is a monitored retroreflective photoeye, designed for entrapment protection for automatic gates and doors. A retroreflective configuration eliminates the need for a separate transmitter and the associated wiring across a roadway, reducing installation costs. The weatherproof design allows this unit to operate to its fullest capability even through harsh outdoor weather conditions.

The universal design of the IRB-RET2 allows it to be used with a wide variety of monitored operators. Additionally, it is compatible with most non-monitored legacy products.

Monitoring Methods:

• Normally Closed
• 10K Resistive Termination
• Two-Wire Pulsed (2 Frequency)
• Two-Wire Pulsed (3 Frequency)
• Four-Wire Pulsed (2 Frequency)
• Four-Wire Pulsed (3 Frequency)

Features:

• 6 UL325 Monitoring Methods
• Type B1, Non-Contact Sensor
• Operating Range: Up to 60 ft
• Sensitivity adjusted by potentiometer
• Universal mounting bracket
• Includes all necessary components for installation
• Alignment LED
• Integrated sensor hood
• Ball and socket bracket
• Reflector extension bracket included
• Selectable stealth mode (LEDs turn off after 30 minutes of unobstructed alignment)
