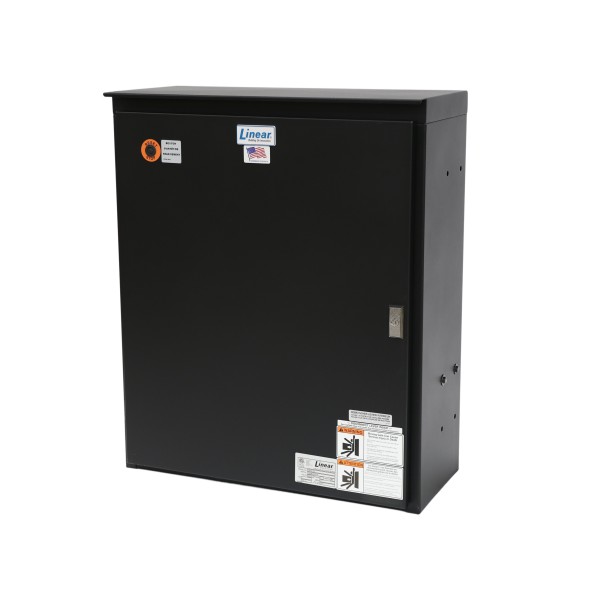

Linear HSLG-221 1/2 HP 230 Volt 1 Phase Commercial Slide Gate Operator

Availability: In stock

$2,615.16 Click for price What's this?
OR

Quick Overview

This HSLG series slide gate operator features the APeX control board, a durable powder coated finish, and includes a 5 year warranty. Great for industrial and commercial applications.

Linear HSLG-221 1/2 HP 230 Volt 1 Phase Commercial Slide Gate Operator

Free shipping on all Linear gate openers

Details

This HSLG series slide gate operator features the APeX control board, a durable powder coated finish, and includes a 5 year warranty. Great for industrial and commercial applications.

Specifications:

  • 1/2 HP, 230V 1 Phase
  • Max gate size: 35 ft, 1000 lbs
  • Max duty cycle: Continuous
  • 5 Year Warranty

Features:

  • Integral APeX Controller
  • Double V-belt to chain reduction
  • #40 roller chain
  • Emergency manual disconnect handle
  • Powder coat finish
  • Post mount standard; pad mount optional

Electrical/Mechanical:

  • Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
  • Continuous-tone entrapment alarm with reset button
  • Integrated warning beeper during gate movement
  • 15 diagnostic LEDs on board for ease of setup and troubleshooting
  • Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
  • On-board APeX Controller three-button control station
  • AC and DC power available for access control accessories
  • All accessory connections 24 VDC
  • Solenoid disc brake
  • Built-in master/slave capability using 3-wire shielded cable
  • Heavy-duty steel chassis
  • Adjustable torque limiter
  • #40 roller chain and sprockets
  • Efficient double V-belt drive

Factory Options:

  • Optional heavy-duty pad mount pedestal
  • Cold weather package

View Specs

View Manual

Note: This operator meets the UL325 6th edition (2016) safety standard. 2 Entrapment Protection Devices are required for operation.

Warranty

Additional Information

SKU HSLG-221
Manufacturer Nortek / Linear LLC / Linear PRO Access / OSCO GATE
Model HSLG
Condition New
Free Shipping Yes
Max Gate Length 35 ft
Max Gate Weight 1000 lbs
Horsepower 1/2 Horsepower
Voltage 208v / 230v
Phase 1 Phase
Max Cycles / Hour Continuous
Opening Speed 10" per Second
