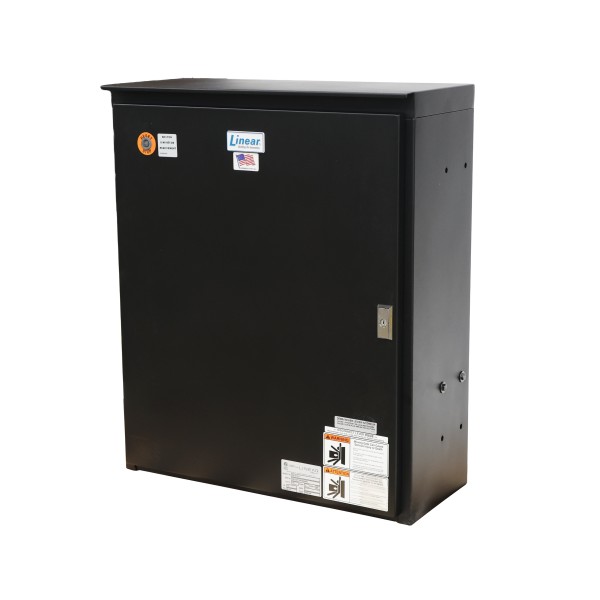

Linear HSLG-211 Heavy-Duty Commercial Slide Gate Opener Single Phase (1/2 HP, 110-120 VAC)

Created for industrial or commercial applications, the HSLG-211 slide gate opener is designed to move gates weighing up to 1,000 lbs and spanning 35 feet in length. Operating smoothly with its integrated APeX three button controller and its 15 diagnostic LEDs on board for ease of setup and troubleshooting, this gate is a great choice for any business. Perfect for busy areas, this slide gate system features a continuous duty cycle and is designed to withstand heavy use. This HSLG series slide gate operator features a durable powder coated finish and includes a 5 year warranty.

Features:

• Integral APeX Controller three-button control station
• Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
• Continuous-tone entrapment alarm with reset button
• Integrated warning beeper during gate movement
• 15 diagnostic LEDs on board for ease of setup and troubleshooting
• Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
• Double V-belt to chain reduction
• #40 roller drive chain and sprockets
• AC and DC power available for access control accessories and reversing devices
• Emergency manual disconnect handle
• Powder coat finish
• Post mount standard; pad mount optional
• Solenoid disc brake
• Built-in master/slave capability using 3-wire shielded cable
• Heavy-duty steel chassis
• Adjustable torque limiter

Specifications:

• 1/2 HP, 115V 1 Phase
• Max gate size: 35 ft, 1000 lbs
• Max duty cycle: Continuous
• 5 Year Warranty
