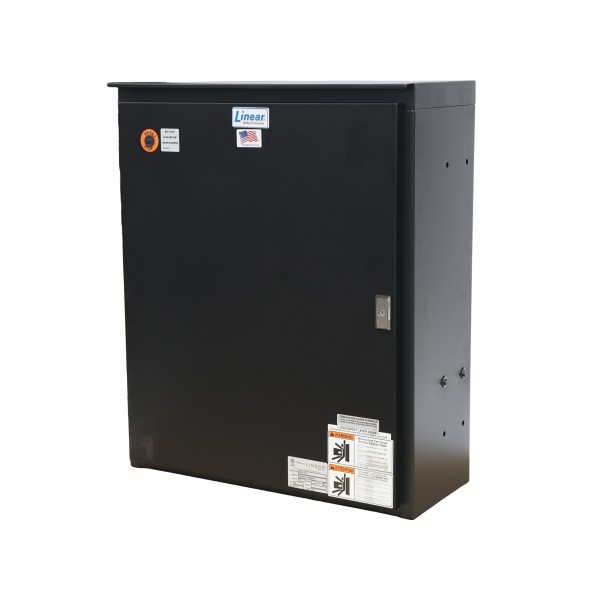

Linear GSLG-A-443 3/4 HP 460 Volt 3 Phase Commercial Slide Gate Operator

Availability: In stock

$3,936.65 Click for price What's this?
OR

Quick Overview

Use this heavy duty slide gate operator for industrial and commercial uses. Operates gates up to 60 ft long and 1400 lbs.

Linear GSLG-A-443 3/4 HP 460 Volt 3 Phase Commercial Slide Gate Operator

Free shipping on all Linear gate openers

Details

Use this heavy duty slide gate operator for industrial and commercial uses. Operates gates up to 60 ft long and 1400 lbs.

Specifications:

  • 3/4 HP, 460V 3 Phase
  • Max gate size: 60 ft, 1400 lbs
  • Maximum duty cycle: Continuous
  • 5 Year Warranty

Features:

  • Integral APeX Controller
  • Direct motor to gear reducer drive
  • C-face brake
  • #50 roller chain
  • Emergency manual disconnect handle
  • Powder coat finish
  • Post mount standard; pad mount optional

Electrical/Mechanical:

  • Thermally protected, heavy-duty PSC motor
  • Double C-face brake
  • Power on/off switch
  • Emergency stop/reset button on front cover
  • On-board APeX Controller three-button control station
  • AC and DC power available for access control accessories and reversing devices
  • All accessory connections 24 VDC
  • Easily adjustable rotary limit switches
  • Heavy-duty 15:1 right-angle C-face gear reducer
  • #50 roller drive chain and sprockets
  • Adjustable torque limiter
  • Heavy-duty pillow-block bearings

Factory Options:

  • Optional pad mount pedestal
  • Cold weather package

View Specs

View Manual

Note: This operator meets the UL325 6th edition (2016) safety standard. 2 Entrapment Protection Devices are required for operation.

Warranty

Additional Information

SKU GSLG-A-443
Manufacturer Nortek / Linear LLC / Linear PRO Access / OSCO GATE
Model GSLG-A
Condition New
Free Shipping Yes
Max Gate Length 60 ft
Max Gate Weight 1400 lbs
Horsepower 3/4 Horsepower
Voltage 460v
Phase 3 Phase
Max Cycles / Hour Continuous
Opening Speed 12" per Second
