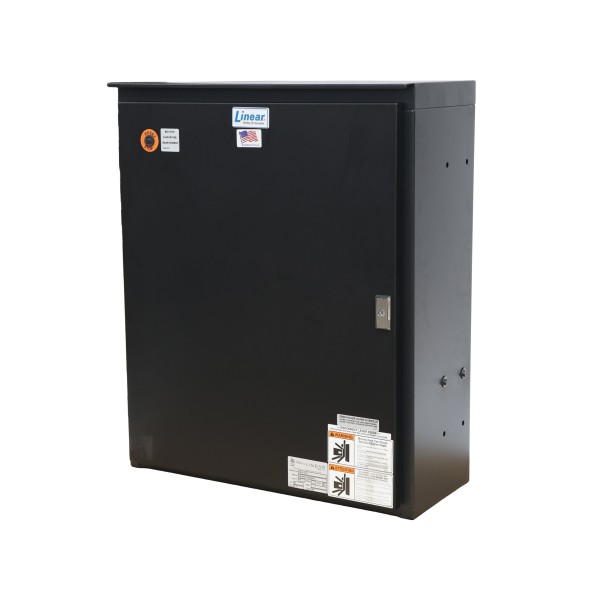

Linear GSLG-A-421 Heavy-Duty Single Phase Commercial Slide Gate Opener (3/4 HP / 230 Volt)
Details
Linear GSLG-A-421 Heavy-Duty Single Phase Commercial Slide Gate Opener (3/4 HP / 230 Volt)
Use this heavy duty slide gate operator for industrial and commercial uses. Operates gates up to 60 ft long and 1400 lbs.
Specifications:
- 3/4 HP, 230V 1 Phase
- Max gate size: 60 ft, 1400 lbs
- Maximum duty cycle: Continuous
- 5 Year Warranty
Features:
- Integral APeX Controller
- Direct motor to gear reducer drive
- C-face brake
- #50 roller chain
- Emergency manual disconnect handle
- Powder coat finish
- Post mount standard; pad mount optional
Electrical/Mechanical:
- Thermally protected, heavy-duty PSC motor
- Double C-face brake
- Power on/off switch
- Emergency stop/reset button on front cover
- On-board APeX Controller three-button control station
- AC and DC power available for access control accessories and reversing devices
- All accessory connections 24 VDC
- Easily adjustable rotary limit switches
- Heavy-duty 15:1 right-angle C-face gear reducer
- #50 roller drive chain and sprockets
- Adjustable torque limiter
- Heavy-duty pillow-block bearings
Factory Options:
- Optional pad mount pedestal
- Cold weather package
| SKU | GSLG-A-421 |
|---|---|
| UPC Code | 9386314641 |
| Max Gate Length | 60 ft |
| Max Gate Weight | 1400 lbs |
| Use Type | Commercial |
| Input Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Condition | New |
| Horsepower | 3/4 Horsepower |
| Manufacturer | Nortek / Linear LLC / Linear PRO Access / OSCO GATE |
| Model | GSLG-A |
| Phase | Single Phase |
