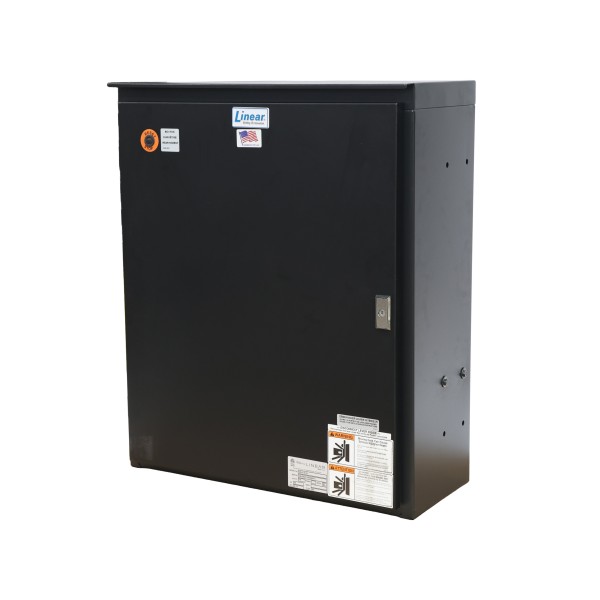

Linear GSLG-A-243 Heavy-Duty 3 Phase Commercial Slide Gate Opener 3 Phase (1/2 HP, 460-480 VAC)
Details
Linear GSLG-A-243 Heavy-Duty 3 Phase Commercial Slide Gate Opener 3 Phase (1/2 HP, 460-480 VAC)
Created for industrial or commercial applications, the GSLG-A-243 slide gate opener is designed to move gates weighing up to 1,100 lbs and spanning 45 feet in length. It operates smoothly and quietly with its integrated APeX three button controller, offering soft-start and soft-stop technology for enhanced functionality. Perfect for busy areas, this slide gate system features a continuous duty cycle and is designed to withstand heavy use. This GSLG-A series slide gate operator features a durable powder coated finish and includes a 5 year warranty.
- Integral APeX Controller three-button control station
- Variable speed settings- Up to 24" per second (soft start / stop)
- Programmable speed control
- Direct C-face drive with brake
- Power on/off switch
- #50 roller drive chain and sprockets
- AC and DC power available for access control accessories and reversing devices
- Emergency manual disconnect handle
- Powder coat finish
- Post mount standard
- Easily adjustable rotary limit switches
- Heavy-duty 10:1 right-angle C-face gear reducer
- Adjustable torque limiter
Specifications:
- 1/2 HP, 460V 3 Phase
- Max gate size: 45 ft, 1100 lbs
- Maximum duty cycle: Continuous
- 5 Year Warranty
| SKU | GSLG-A-243 |
|---|---|
| UPC Code | 9386314639 |
| Max Gate Length | 45 ft |
| Max Gate Weight | 1100 lbs |
| Warranty | Download PDF file |
| Cut Sheet | Download PDF file |
| Use Type | Commercial |
| Owner's Manual | Download PDF file |
| Input Voltage | 460 AC (60 Hz, 3 Phase), 480 AC (60 Hz, 3 Phase) |
| Condition | New |
| Horsepower | 1/2 Horsepower |
| Manufacturer | Nortek / Linear LLC / Linear PRO Access / OSCO GATE |
| Model | GSLG-A |
| Phase | 3 Phase |
