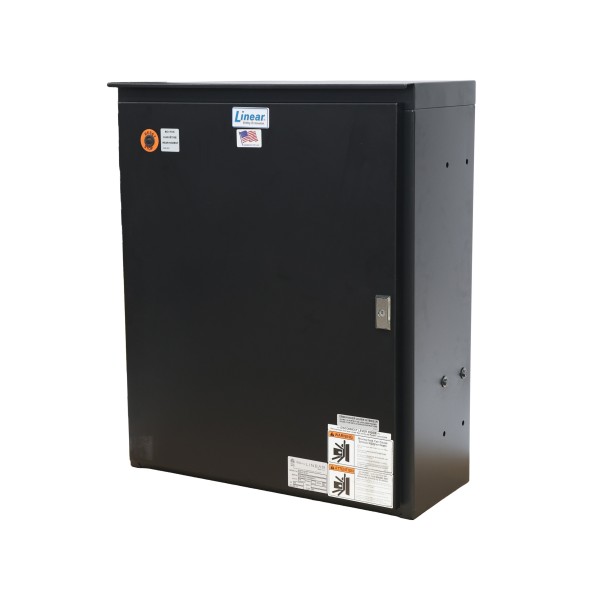

Linear GSLG-A-123 Heavy-Duty 3 Phase Commercial Slide Gate Opener 3 Phase (1 HP / 208/240 Volt)
Details
Linear GSLG-A-123 Heavy-Duty 3 Phase Commercial Slide Gate Opener 3 Phase (1 HP / 208/240 Volt)
Created for industrial or commercial applications, the GSLG-A-123 slide gate opener is designed to move gates weighing up to 2,200 lbs and spanning 78 feet in length. It operates smoothly and quietly with its integrated APeX three-button controller, offering soft-start and soft-stop technology for enhanced functionality.Perfect for busy areas, this slide gate system features a continuous duty cycle and is designed to withstand heavy use. This GSLG-A series slide gate operator features a durable powder-coated finish and includes a 5 year warranty.
Features:
- Integral APeX Controller three-button control station
- Variable speed settings- Up to 24" per second (soft start / stop)
- Programmable speed control
- Direct C-face drive with brake
- Power on/off switch
- #50 roller drive chain and sprockets
- AC and DC power available for access control accessories and reversing devices
- Emergency manual disconnect handle
- Powder coat finish
- Post mount standard
- Easily adjustable rotary limit switches
- Heavy-duty 10:1 right-angle C-face gear reducer
- Adjustable torque limiter
Specifications:
- 1 HP, 230V 1 Phase
- Max gate size: 78 ft, 2200 lbs
- Maximum duty cycle: Continuous
- 5 Year Warranty
| SKU | GSLG-A-123 |
|---|---|
| UPC Code | 9386314634 |
| Opener Application | Commercial |
| Max Gate Length | 78 ft |
| Max Gate Weight | 2200 lbs |
| Use Type | Commercial |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
208 AC (60 Hz, 3 Phase), 240 AC (60 Hz, 3 Phase) |
| Condition | New |
| Horsepower | 1 Horsepower |
| Manufacturer | Nice North America / Linear PRO Access / OSCO |
| Model | GSLG-A |
| Phase | 3 Phase |
| Warranty | 5 Year Limited Warranty |
| Warranty Information | Download PDF file |
| Cut Sheet | Download PDF file |
| Owner's Manual | Download PDF file |
