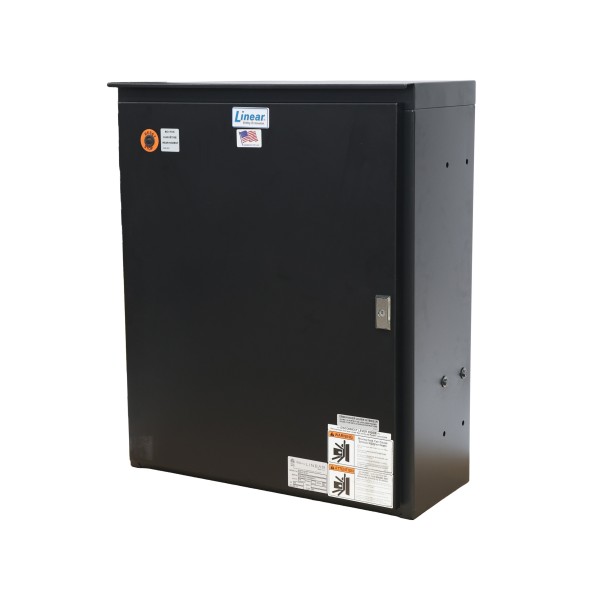

Linear GSLG-A-111 1 HP 115 Volt 1 Phase Commercial Slide Gate Operator

Linear GSLG-A-111 1 HP 115 Volt 1 Phase Commercial Slide Gate Operator
$3,327.33
Free Shipping!
Use this heavy duty gate operator for industrial and commercial uses. Operates gates up to 78 ft long and 2200 lbs.

OR

Call (800) 878-7829

Details

Use this heavy duty slide gate operator for industrial and commercial uses. Operates gates up to 78 ft long and 2200 lbs.

Specifications:

  • 1 HP, 115V 1 Phase
  • Max gate size: 78 ft, 2200 lbs
  • Maximum duty cycle: Continuous
  • 5 Year Warranty

Features:

  • Integral APeX Controller
  • Direct motor to gear reducer drive
  • C-face brake
  • #50 roller chain
  • Emergency manual disconnect handle
  • Powder coat finish
  • Post mount standard; pad mount optional

Electrical/Mechanical:

  • Thermally protected, heavy-duty PSC motor
  • Double C-face brake
  • Power on/off switch
  • Emergency stop/reset button on front cover
  • Duplex receptacle
  • On-board APeX Controller three-button control station
  • AC and DC power available for access control accessories and reversing devices
  • All accessory connections 24 VDC
  • Easily adjustable rotary limit switches
  • Heavy-duty 15:1 right-angle C-face gear reducer
  • #50 roller drive chain and sprockets
  • Adjustable torque limiter
  • Heavy-duty pillow-block bearings

Factory Options:

  • Optional pad mount pedestal
  • Cold weather package

View Specs

View Manual

Note: This operator meets the UL325 6th edition (2016) safety standard. 2 Entrapment Protection Devices are required for operation.

Warranty

Additional Information

SKU GSLG-A-111
Manufacturer Nortek / Linear LLC / Linear PRO Access / OSCO GATE
Model GSLG-A
Condition New
Free Shipping Yes
Max Gate Length 78 ft
Max Gate Weight 2200 lbs
Horsepower 1 Horsepower
Voltage 115V
Phase No
Max Cycles / Hour Continuous
Opening Speed 12" per Second
