Details

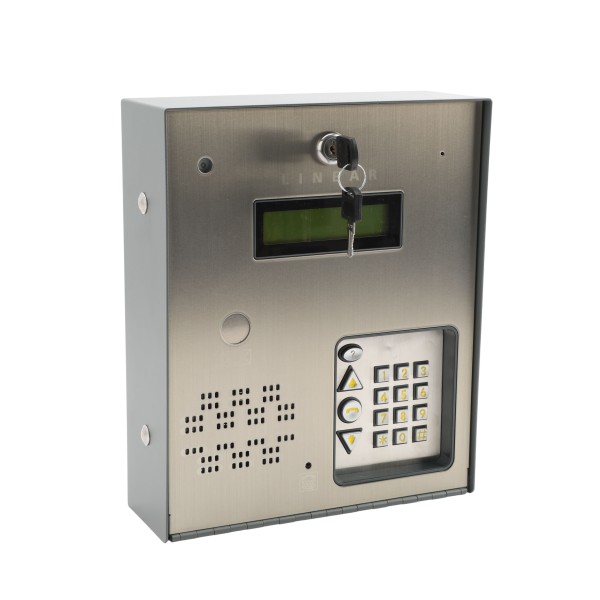

Linear - Commercial Telephone Entry System - One Gate/Door - ACP00937

The AE-100 Commercial Single Door Telephone Entry is enclosed in locked stainless steel and can be mounted flush or on a surface or pedestal. This system utilizes duplex telephone communication for residents and visitors, a backlit two-line directory LCD that scrolls programmable welcome messages, names, and directory codes. The system is programmed with a built-in microphone, a tamper-resistant speaker, and a TTY connector. It can control electrical door strikes, magnetic locks, doors, gates, and barrier operators. Programming is made easy with local keypad programming, remote touch-tone telephone options, multi-lingual display programming, and voice help.

Features:

• Indoor/outdoor use
• Surface/flush mounting
• Stainless steel
• Integral keypad
• Two-line, 16-character LCD Display
• Speakers, microphone, TTY jack for text communication connection for hearing impaired.
• 125 directory listing capacity or stand-alone entry codes.
• Network capability of up to 4 units.

Specifications

• Dimensions: 9.75" W x 11.75" H x 3.5" D
• Form “C” access relay rated at 10 amps AC and 7 amps DC @ 30 volts
• Supports internal rechargeable 1.2 amp/hour backup battery, and battery charging circuit supports external backup battery up to 7 amp/hour.
• Powered from a 16 VAC plug-in transformer.
