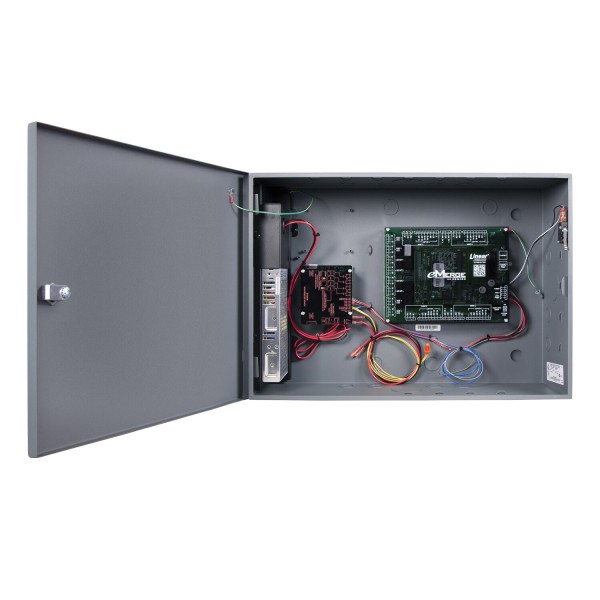

Linear Elite-36 36-Door Access Control System w/ Power Distribution Cabinet & 4-Door Controller

The Linear 620-100258P Elite-36 is a comprehensive access control solution for large facilities, managing up to 36 doors. It includes a power distribution cabinet and a 4-door controller for centralized security monitoring. This system offers advanced access management capabilities, making it ideal for large-scale commercial and industrial environments. With expansion options, it provides flexible and scalable security solutions.

Key Features:

• Shared hardware and software architecture across all e3-Series means easy upgrades and expansion
• Reliable, IT-friendly embedded Linux operating system eliminates: Virus / spyware attacks, Operating System update dependency
• e3 Elite is ready to connect with 4 doors and 8 readers, but can easily expanded to support 128 doors and 256 readers with license key(s) and Linear’s EXN and ACM expansion nodes.
• Up to 20,000 cardholders with up to 80,000 cards
• Intuitive quick-start wizard allows for ultra-fast setup, saves hours of time versus traditional systems
• Browser-based management enables system status and updates from any place, with any browser, on any operating system
• Midsized metal enclosure with Key Lock
• UL 294 Certified

  Specifications:

  • 4 Individual Aux Outputs – each output is selectable for 12 or 24 volts
  • PTC Protection (Positive Temperature Coefficient) – Resettable fuses enables the Power Distribution Box to reset and provide power without the need to replace a physical fuse
  • 2 Individual Access Controller Power Outputs – powers two modules in one housing
  • Battery Charging Output – up to two 7 AMP batteries
  • Fire release input – enables the power distribution box to release all access doors when fire alarm is activated
  • Notification upon AC Failure or Low Battery
