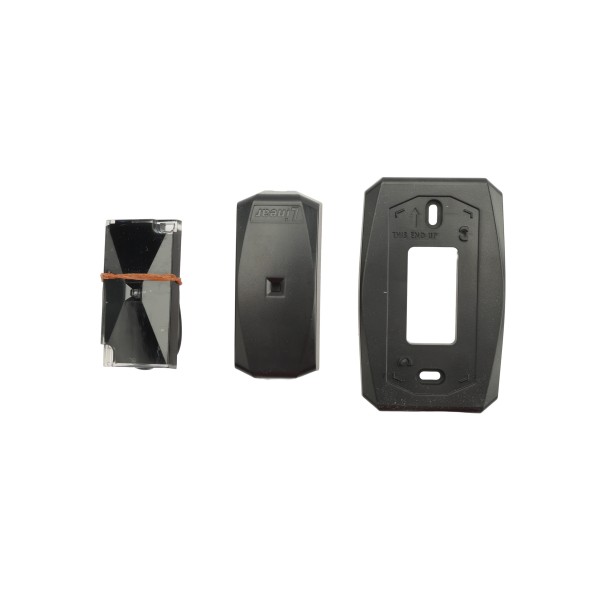

Linear/Osco 2N1 Convertible Proximity Reader (6" Range) - 620-100451HAF

Linear's 2-N-1 Proximity Reader has a modern, low-profile design sealed in a weather-resistant epoxy potting. Featuring both visual and audible indicators, this proximity reader is easy to use, easy to install, and has a 6" read range. The 2N1 Proximity Reader is convertible for single-gang and mullion-mount installations. Single-gang installations require the included adapter plate that will turn the reader into a single-gang electrical box style reader. This maintenance-free Proximity Reader is ready to install out of the box without the need for any additional hardware.

Specifications:

• Color: Black
• IP Code: IP67
• Frequency: 125 kHz
• Read Range: Up To 6"
• Voltage: +5 to +16V DC
• Interface: Wiegand ABA Track II
• Mounting: Mullion or single-gang
• Operating Temperature: -40 Degrees F to 149 Degrees F
• Mullion Dimensions: 3.92" x 1.74" x 0.98"
• Single-Gang Dimensions: 4.77" x 2.96" x 1.33"
• Reader Type: Proximity 26- to 37-Bit Wiegand
• LED: Four-State Indicator (Red, Green, Amber, Off)
• Certification: ETL Listed UL 294, FCC, ICC, CE, C-Tick
• Cabling: 24 AWG Minimum, Multi-Conductor Stranded With An Overall Foil Shield 500'

Features:

• Weather Resistant for Indoor And Outdoor Installation
• low-profile Design
• Can Be Installed As A Mullion-Mount Reader
• No Batteries Required For Cards Or Tags
• LED Visual Indicator And Audible Indicator

Compatible Credentials:

• AWID 125 kHz Proximity Protocols
• Works With Certain HID 125kHz Formats And Card Readers
• Farpointe Data Pyramid Series Proximity Cards And Tags

Applications:

• Door Gates
• Parking Access
• Metal Or Wood-Frame Doors
• Metal Or Wood-Frame Windows
• Electrical Junction Box Mounting In Wallboard, Block Walls, And More

*Other credential models include: Farpointe PSC-1, PSI-4, PSM-2, PSK-3, and PDT-1; HID ProxCard II, ISOProx II and ProxKey II, and AWID models CS Prox Card, GR (ISO) Graphics Quality Prox Card and KT Key Tag
