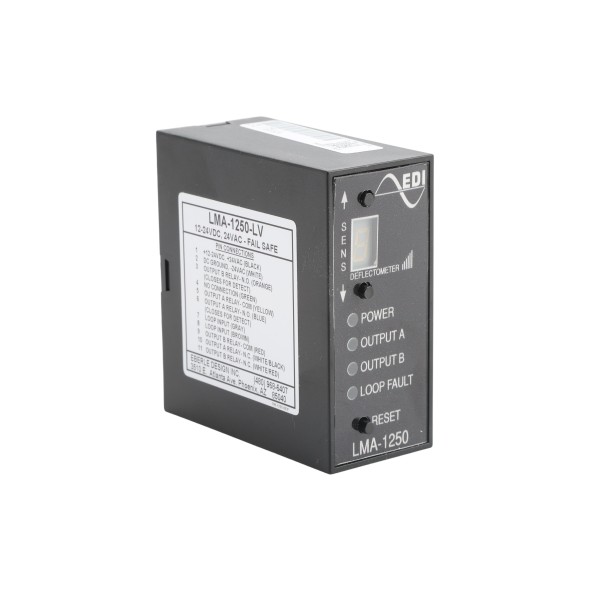

Linear Dual Relay Vehicle Loop Detector with Display - 2500-2377

Dual relay vehicle loop detector with display (LMA-1250LV), 12-24 volts AC/DC.
Part Number: 2500-2377
$332.14 each
$332.14 each
OR


Details

Linear Dual Relay Vehicle Loop Detector with Display - 2500-2377

The Linear LMA-1250LV 2500-2377 Single Channel Dual Transistor Vehicle Loop Detector provides high-quality vehicle detection guaranteed to improve the performance and lifecycle of access control systems. Its simple and accurate troubleshooting interface will allow for quick installation with reliable vehicle detection services and with four sensitivity and four frequency levels, it's a versatile element of any gate system.

Features:

  • Fail-Safe
  • Automatic Tuning
  • 4 Frequency Levels
  • Color-Coded LED Indicators
  • Lighting And Surge Protection
  • 4 Sensitivity Levels With Sensitivity Boost
  • Compatible With All Radio Controls And Remote Openers

Specifications:

  • Relays: NC, NO, C
  • Input Power: 12VDC, 24V AC/DC
  • 11-Pin Male Molex Amphenol Connector
  • Dimensions: 2.875" (H) x 1.375" (W) x 3.0625" (D)
  • Wide Loop Inductance Range: 20 - 2500 microHenries
  • Operating Temperature: -30 Degrees F To 165 Degrees F

Specification Sheet

Prefer to Call? (888) 378-1053

Questions about part number 2500-2377?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 2500-2377
Input Voltage 12 DC, 12 AC, 24 DC, 24 AC
Manufacturer Nortek / Linear LLC / Linear PRO Access / OSCO GATE
Relay Type Dual Relay
Pins 11-Pin
Operation Plug-In Play
LED Indicators Loop Fault, Output A, Output B, Power
Product Loop Detector
Condition New
