eMerge Essential 1-Door System - 620-100151
Details
eMerge Essential 1-Door System - 620-100151
The Linear eMerge Essential 1-Door System (Model: 620-100151) is a compact, browser-managed access control platform designed for small businesses, retail, medical offices, and other facilities requiring simple yet scalable door security. This embedded network appliance includes both hardware and software in a single self-contained unit, supporting one door and two readers out of the box with expansion capability up to four doors and eight readers using software license keys. The system can be configured and monitored entirely through a web browser on any desktop or mobile device, providing flexibility and accessibility without the need for dedicated software or operating system dependencies. Its embedded Linux operating system is resistant to common cyber threats and avoids the need for continuous updates or antivirus support.
Installation and configuration are streamlined with a built-in quick-start wizard, reducing the time typically spent deploying access control solutions. The compact, ruggedized plastic enclosure saves space while offering reliable housing for the internal solid-state components. Ideal for facilities looking to secure access points, manage user credentials, and log entry data, the system also features mobile compatibility, real-time notifications, predefined reports, and visual mapping tools. This unit is fully compatible with the broader eMerge E3-Series, enabling users to upgrade and expand as needs grow, all while maintaining low total cost of ownership.
Key Features
- 1-door / 2-reader capacity out of the box, expandable to 4-doors / 8-readers via license key
- Compact, ruggedized plastic enclosure ideal for space-constrained installations
- Browser-based system management—no client software required
- Remote access from any device or operating system
- Quick-start setup wizard reduces installation and configuration time
- Fully upgradeable to higher-tier eMerge E3-Series platforms
- Linux-based embedded OS offers a secure, maintenance-free foundation
- UL 294 certification pending
- Includes ODBC-compliant MySQL database with API
Hardware Features
- 100% solid state components for consistent operation and long service life
- 1GHz processor supports 30+ transactions per second
- 512MB DDR2 RAM and Micro SD storage (included)
- Built-in tamper detection for enclosure security
- 12+2 digital input support and up to 8 programmable outputs
- Optional PoE functionality allows UPS integration for power backup
Software Features
- Unified software interface across all eMerge E3-Series systems
- Dashboard overview with system health, event log, and real-time activity
- Customizable door diagrams and facility layout templates
- Integrated card decoder for streamlined credential programming
- Flat file (CSV) import for fast bulk user data entry
- Dynamic event filters and built-in audit trail
- Daily data backup options to Micro SD or FTP server
- Mobile device access via iPhone, iPad, or Android
- Email and SMS event notifications for real-time system alerts
- Predefined reports and built-in system documentation
- Optional software enhancements available through upgrade
Includes

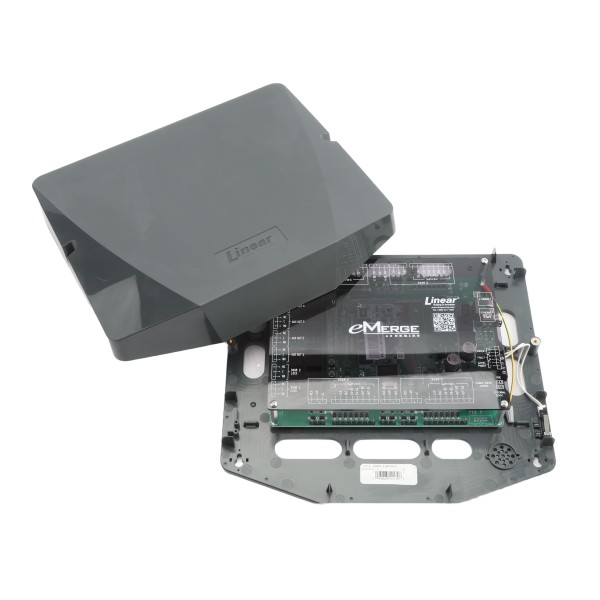

- Linear eMerge Essential 1-Door Access Control Unit (620-100151)
- Ruggedized plastic enclosure
- Micro SD storage card (pre-installed)
- Preloaded browser-based management software
Specifications
- Model: eMerge Essential 1-Door
- Order Number: 620-100151
- Processor: 1GHz
- RAM: 512MB DDR2 (333MHz)
- Storage: Micro SD Media (included)
- Operating System: Embedded Linux
- Power: 12V DC
- Simultaneous System Users: 8
- Transactions per Second: > 30
- Doors Supported: 1 (expandable to 4 via license)
- Maximum Readers: 8
- Inputs: Up to 12 + 2 digital
- Outputs: Up to 8
- Cardholders: 1,000
- Access Cards: 8,000
- Cards per Person: 12
- Card Formats Supported: 32
- Access Levels: 8
- Time Schedules: 100
- Online Transaction Capacity: 15,000
- Enclosure Dimensions: 12.25 in x 11.1 in x 2.23 in (31.1 cm x 28.2 cm x 5.7 cm)
SKU | 620-100151 |
---|---|
UPC Code | 93863121708 |
Model | ES-1C |
System | eMerge Essential |
Entry Solutions Type | eMerge Access Control |
Doors | 1-Door |
Enclosure | Compact Plastic |
Condition | New |
