Details

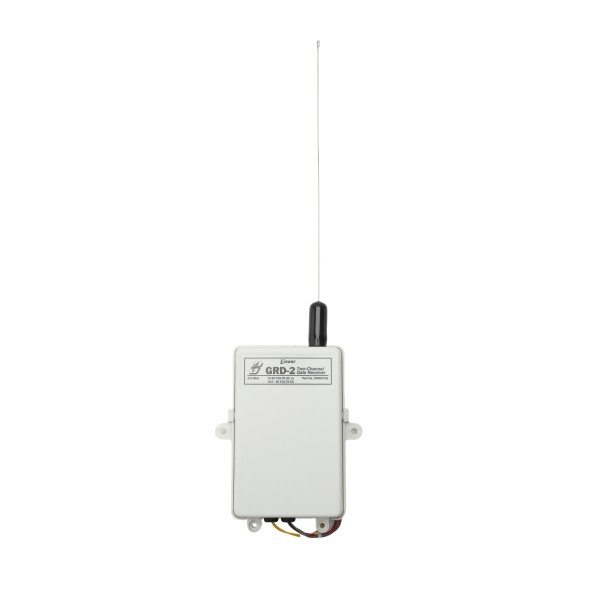

Linear/OSCO GRD-2 2 Channel Delta Gate Receiver - DNR00102

Parking lots with separate entry and exit gates use the second channel to handle auxiliary outputs. Installers choose 256 unique codes per channel via DIP switches. Remote antenna compatibility ensures reliable reception when the board sits inside a metal operator case. Three-terminal blocks for each output simplify wiring of two separate circuits. Standard 8-DIP configuration provides 256 selectable code combinations per channel.

Features:

• Auto voltage sensing - no jumpers to set
• Two Form ”A” (normally open) relays rated at 30 Volts AC/DC up to 5 Amps
• Supplied with whip antenna, three feet of coaxial cable, and bulkhead connector
• Power: 12 - 30 VAC or 10.5 - 30 VDC
• Codes: 128 (set by DIP switches)
• RF frequency: 310 MHz
• Dimensions: 3.625" W x 5.25" H x 1.5" D
