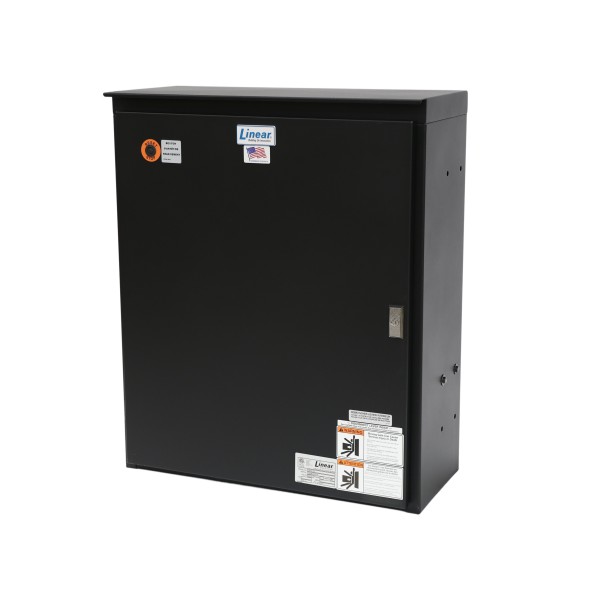

Linear HSLG-421 Heavy-Duty Single Phase Commercial Slide Gate Opener (3/4 HP / 230 Volt)
Details
Linear HSLG-421 Heavy-Duty Single Phase Commercial Slide Gate Opener (3/4 HP / 230 Volt)
This HSLG series slide gate operator features the APeX control board, a durable powder coated finish, and includes a 5 year warranty. Great for industrial and commercial applications.
Specifications:
- 3/4 HP, 230V 1 Phase
- Max gate size: 45 ft, 1200 lbs
- Max duty cycle: Continuous
- 5 Year Warranty
Features:
- Integral APeX Controller
- Double V-belt to chain reduction
- #40 roller chain
- Emergency manual disconnect handle
- Powder coat finish
- Post mount standard; pad mount optional
Electrical/Mechanical:
- Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
- Continuous-tone entrapment alarm with reset button
- Integrated warning beeper during gate movement
- 15 diagnostic LEDs on board for ease of setup and troubleshooting
- Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
- On-board APeX Controller three-button control station
- AC and DC power available for access control accessories
- All accessory connections 24 VDC
- Solenoid disc brake
- Built-in master/slave capability using 3-wire shielded cable
- Heavy-duty steel chassis
- Adjustable torque limiter
- #40 roller chain and sprockets
- Efficient double V-belt drive
Factory Options:
- Optional heavy-duty pad mount pedestal
- Cold weather package
| SKU | HSLG-421 |
|---|---|
| UPC Code | 9386314653 |
| Max Gate Length | 45 ft |
| Max Gate Weight | 1200 lbs |
| Use Type | Commercial |
| Input Voltage | 220/230/240 AC (60 Hz, 1 Phase) |
| Condition | New |
| Horsepower | 3/4 Horsepower |
| Manufacturer | Nortek / Linear LLC / Linear PRO Access / OSCO GATE |
| Model | HSLG |
| Phase | Single Phase |
